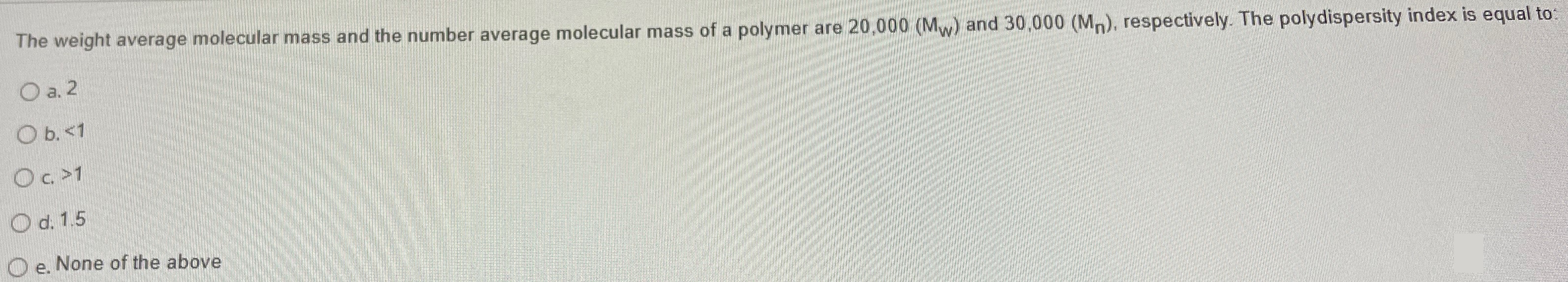

The weight average molecular mass and the number average molecular mass of a polymer are 20,000 (Mw) and 30,000 (Mn), respectively. The polydispersity index is equal to: a. 2 b. < 1 c. > 1 d. 1.5 e. None of the above
Image text
The weight average molecular mass and the number average molecular mass of a polymer are and 30,000 ( ), respectively. The polydispersity index is equal to:
a. 2
b.
c.
d. 1.5
e. None of the above
