Question

Notify Me Bookmark

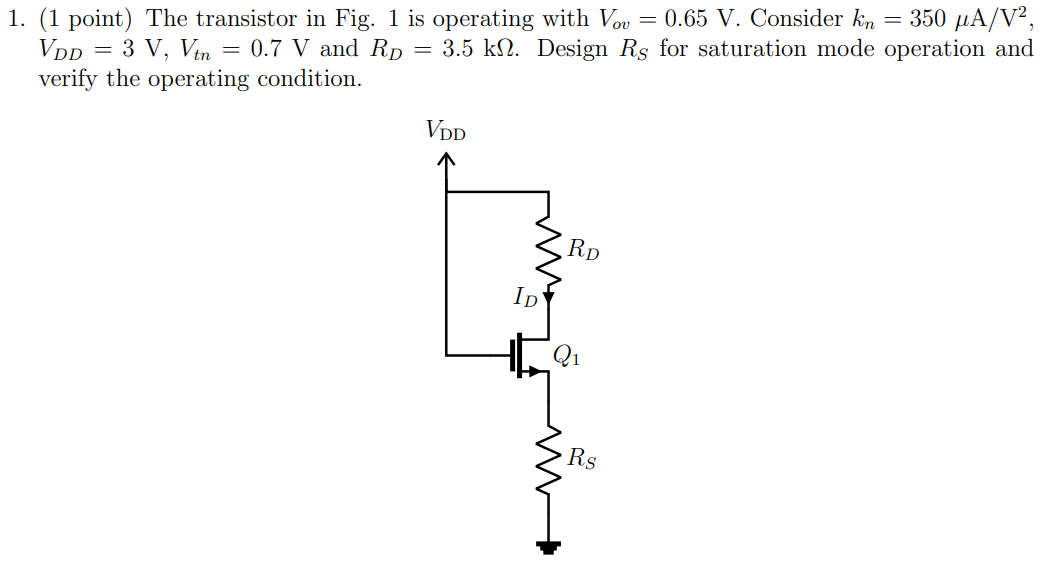

(1 point) The transistor in Fig. 1 is operating with Vov = 0.65 V. Consider kn = 350 μA/V2, VDD = 3 V, Vtn = 0.7 V and RD = 3.5 kΩ. Design RS for saturation mode operation and verify the operating condition.

Image text

( 1 point) The transistor in Fig. 1 is operating with $V_{o v} = 0.65 V$ . Consider $k_{n} = 350 μ A / V^{2}$ , $V_{D D} = 3 V, V_{t n} = 0.7 V$ and $R_{D} = 3.5 k Ω$ . Design $R_{S}$ for saturation mode operation and verify the operating condition.
