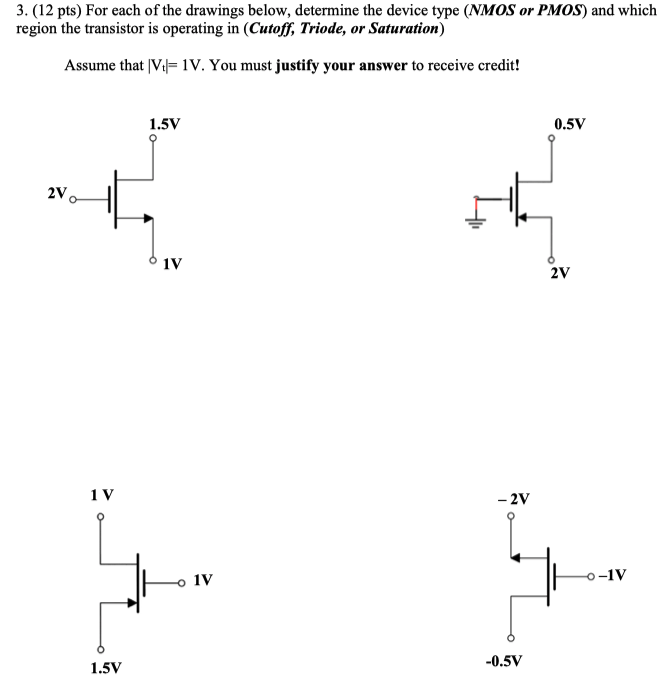

(12 pts) For each of the drawings below, determine the device type (NMOS or PMOS) and which region the transistor is operating in (Cutoff, Triode, or Saturation) Assume that |Vt| = 1 V. You must justify your answer to receive credit! 1.5 V −0.5 V

(12 pts) For each of the drawings below, determine the device type (NMOS or PMOS) and which region the transistor is operating in (Cutoff, Triode, or Saturation) Assume that |Vt| = 1 V. You must justify your answer to receive credit! 1.5 V −0.5 V

Image text
  1. (12 pts) For each of the drawings below, determine the device type (NMOS or PMOS) and which region the transistor is operating in (Cutoff, Triode, or Saturation) Assume that | V t | = 1 V . You must justify your answer to receive credit! 1.5 V − 0.5 V

Detailed Answer
