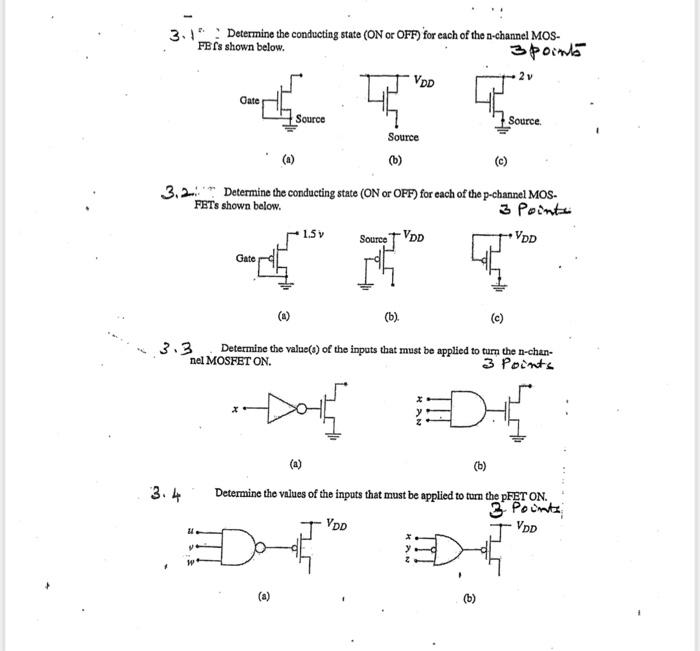

3.1 Determine the conducting state (ON or OFF) for each of the n-channel MOSFET's shown below. 3.2. Determine the conducting state (ON or OFF) for each of the p-channel MOSFETs shown below. 3.3 Determine the value(s) of the inputs that must be applied to turn the n-channel MOSFET ON. 3.4 Determine the values of the inputs that must be applied to turn the pFET ON.
