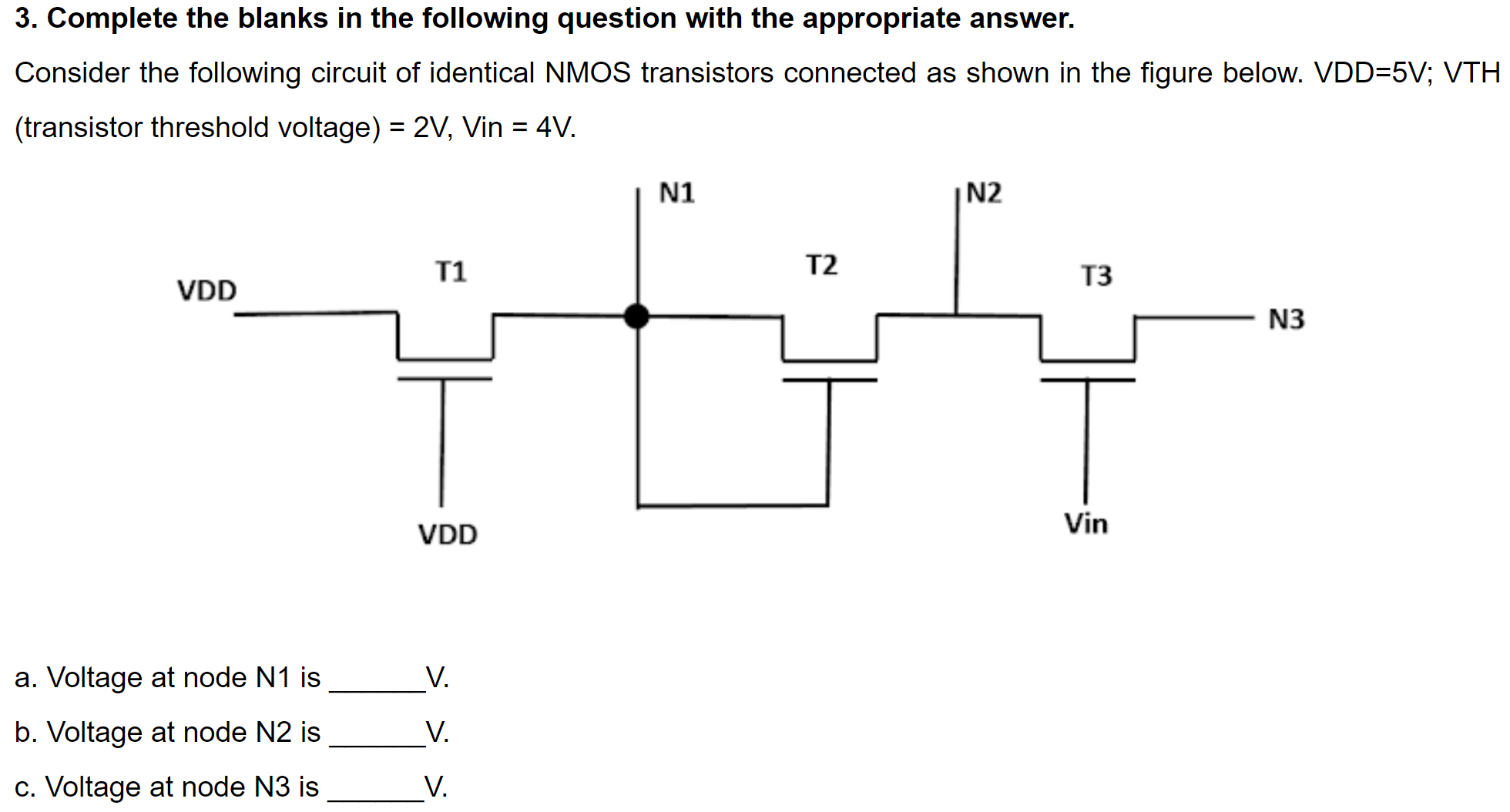

3. Complete the blanks in the following question with the appropriate answer. Consider the following circuit of identical NMOS transistors connected as shown in the figure below. VDD=5V; VTH (transistor threshold voltage) = 2 V, Vin = 4 V a. Voltage at node N1 is V. b. Voltage at node N2 is V. c. Voltage at node N3 is V.
