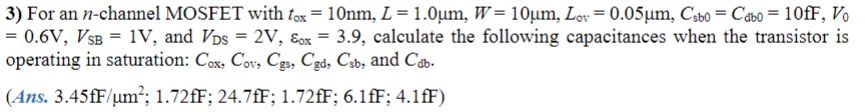

3) For an n-channel MOSFET with tox = 10nm, L = 1.0μm, W = 10μm, Lov = 0.05μm, Csb0 = Cdb0 = 10fF, V0 = 0.6V, VSB = 1V, and VDS = 2V, Eox = 3.9, calculate the following capacitances when the transistor is operating in saturation: Cox, Cov, Cgs, Cgd, Csb, and Cdb. 4) Calculate fT for the n-channel MOSFET whose capacitances were found in the problem 3 above. Assume operation at 100uA, and that kn' = 160μA/V^2.

3) For an n-channel MOSFET with tox = 10nm, L = 1.0μm, W = 10μm, Lov = 0.05μm, Csb0 = Cdb0 = 10fF, V0 = 0.6V, VSB = 1V, and VDS = 2V, Eox = 3.9, calculate the following capacitances when the transistor is operating in saturation: Cox, Cov, Cgs, Cgd, Csb, and Cdb. 4) Calculate fT for the n-channel MOSFET whose capacitances were found in the problem 3 above. Assume operation at 100uA, and that kn' = 160μA/V^2.

3) For an n-channel MOSFET with tox = 10nm, L = 1.0μm, W = 10μm, Lov = 0.05μm, Csb0 = Cdb0 = 10fF, V0 = 0.6V, VSB = 1V, and VDS = 2V, Eox = 3.9, calculate the following capacitances when the transistor is operating in saturation: Cox, Cov, Cgs, Cgd, Csb, and Cdb. 4) Calculate fT for the n-channel MOSFET whose capacitances were found in the problem 3 above. Assume operation at 100uA, and that kn' = 160μA/V^2.

Image text
3) For an n-channel MOSFET with tox = 10nm, L = 1.0μm, W = 10μm, Lov = 0.05μm, Csb0 = Cdb0 = 10fF, V0 = 0.6V, VSB = 1V, and VDS = 2V, Eox = 3.9, calculate the following capacitances when the transistor is operating in saturation: Cox, Cov, Cgs, Cgd, Csb, and Cdb. 4) Calculate fT for the n-channel MOSFET whose capacitances were found in the problem 3 above. Assume operation at 100uA, and that kn' = 160μA/V^2.

Detailed Answer

3 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (3)
  • Correct answers (1)
  • Complete solution (1)
  • Step-by-step solution (1)
  • Fully explained (1)

Similar/Related Questions

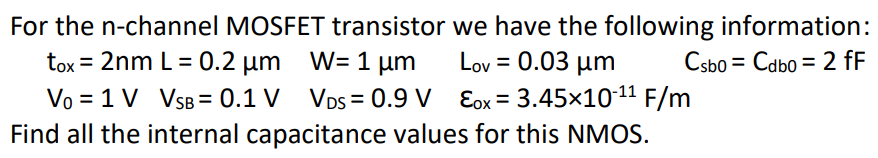

For the n-channel MOSFET transistor we have the following information: tox = 2 nm L = 0.2 μm, W = 1 μm, Lov = 0.03 μm, Csb0 = Cdb0 = 2 fF V0 = 1 V, VSB = 0.1 V VDS = 0.9 V, ε0 = 3.45×10-11 F/m. Find all the internal capacitance values for this NMOS.
