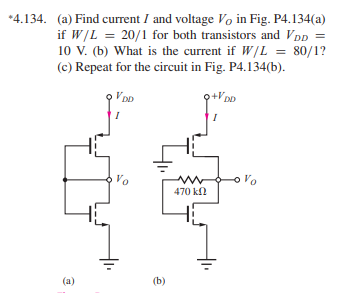

*4.134. (a) Find current I and voltage VO in Fig. P4.134(a) if W/L = 20/1 for both transistors and VDD = 10 V. (b) What is the current if W/L = 80/1? (c) Repeat for the circuit in Fig. P4.134(b). (a) (b)

*4.134. (a) Find current I and voltage VO in Fig. P4.134(a) if W/L = 20/1 for both transistors and VDD = 10 V. (b) What is the current if W/L = 80/1? (c) Repeat for the circuit in Fig. P4.134(b). (a) (b)

Image text
*4.134. (a) Find current I and voltage V O in Fig. P4.134(a) if W / L = 20 / 1 for both transistors and V D D = 10 V . (b) What is the current if W / L = 80 / 1 ? (c) Repeat for the circuit in Fig. P4.134(b). (a) (b)
