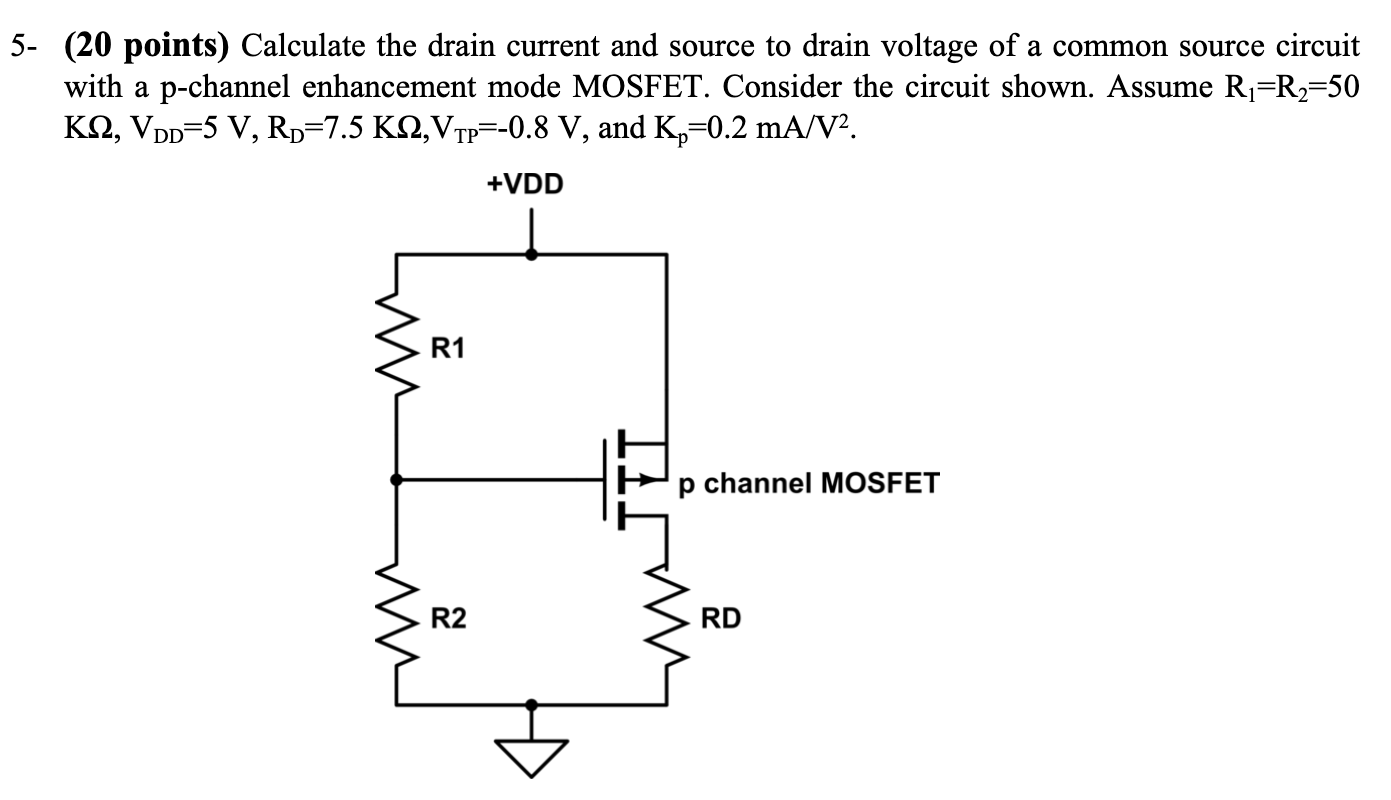

5- (20 points) Calculate the drain current and source to drain voltage of a common source circuit with a p-channel enhancement mode MOSFET. Consider the circuit shown. Assume R1 = R2 = 50 KΩ, VDD = 5 V, RD = 7.5 KΩ, VTP = −0.8 V, and Kp = 0.2 mA/V2.

5- (20 points) Calculate the drain current and source to drain voltage of a common source circuit with a p-channel enhancement mode MOSFET. Consider the circuit shown. Assume R1 = R2 = 50 KΩ, VDD = 5 V, RD = 7.5 KΩ, VTP = −0.8 V, and Kp = 0.2 mA/V2.

Image text
5- (20 points) Calculate the drain current and source to drain voltage of a common source circuit with a p-channel enhancement mode MOSFET. Consider the circuit shown. Assume R 1 = R 2 = 50 K Ω , V D D = 5 V , R D = 7.5 K Ω , V T P = − 0.8 V , and K p = 0.2 m A / V 2 .

Detailed Answer
