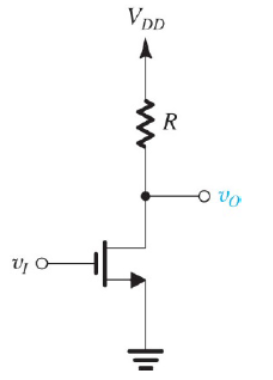

5.54 The MOSFET in Fig. P5.54 has Vt = 0.4 V, kn′ = 500 μA/V2, and λ = 0. Find the required values of W/L and of R so that when vI = VDD = +1.3 V, rDS = 50 Ω, and vO = 50 mV

5.54 The MOSFET in Fig. P5.54 has Vt = 0.4 V, kn′ = 500 μA/V2, and λ = 0. Find the required values of W/L and of R so that when vI = VDD = +1.3 V, rDS = 50 Ω, and vO = 50 mV

Image text
5.54 The MOSFET in Fig. P5.54 has Vt = 0.4 V, kn′ = 500 μA/V2, and λ = 0. Find the required values of W/L and of R so that when vI = VDD = +1.3 V, rDS = 50 Ω, and vO = 50 mV

Detailed Answer
