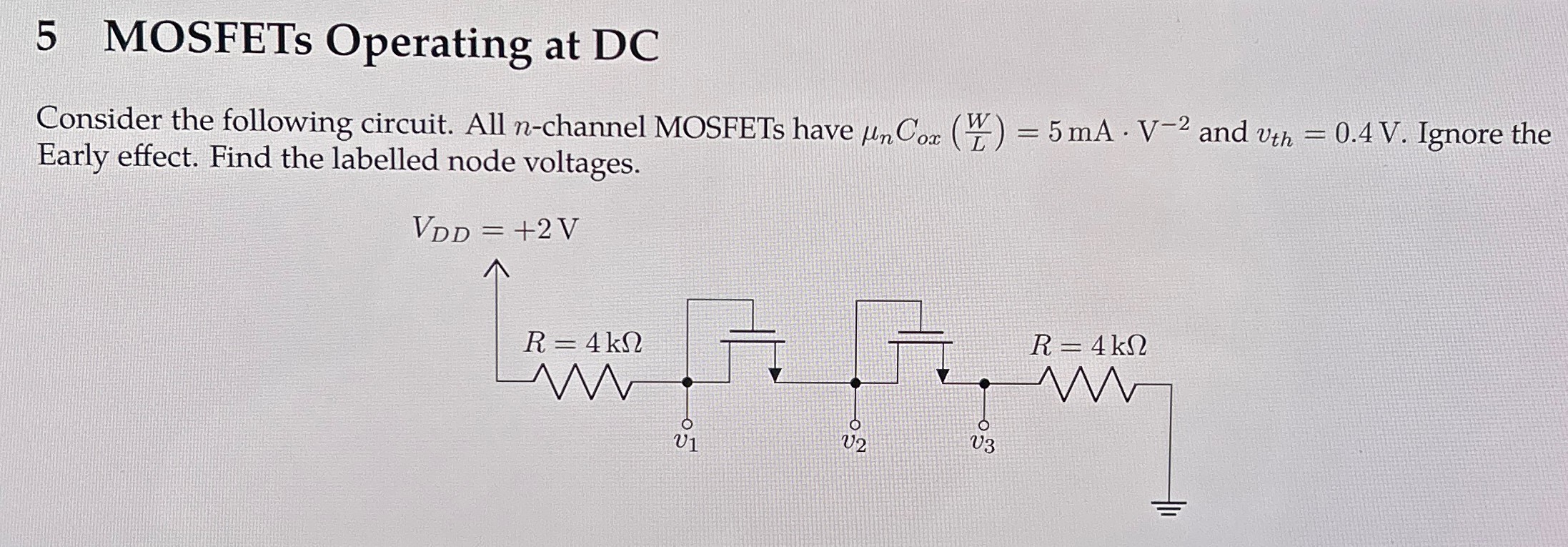

5 MOSFETs Operating at DC Consider the following circuit. All n-channel MOSFETs have μnCox(WL) = 5 mA⋅V−2 and vth = 0.4 V. Ignore the Early effect. Find the labelled node voltages.

5 MOSFETs Operating at DC Consider the following circuit. All n-channel MOSFETs have μnCox(WL) = 5 mA⋅V−2 and vth = 0.4 V. Ignore the Early effect. Find the labelled node voltages.

Image text
5 MOSFETs Operating at DC Consider the following circuit. All n -channel MOSFETs have μ n C o x ( W L ) = 5 m A ⋅ V − 2 and v t h = 0.4 V . Ignore the Early effect. Find the labelled node voltages.

Detailed Answer
