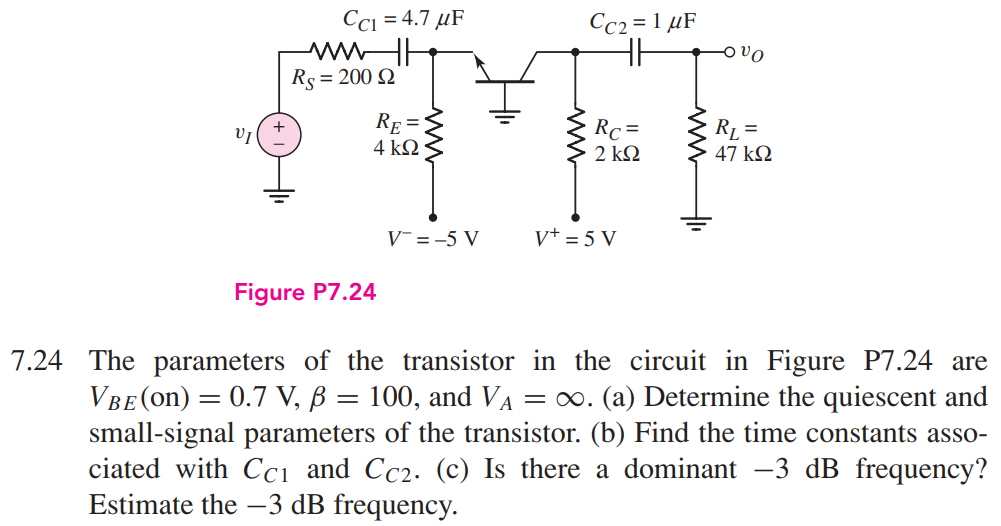

7.24 The parameters of the transistor in the circuit in Figure P7.24 are VBE( on ) = 0.7 V, β = 100, and VA = ∞. (a) Determine the quiescent and small-signal parameters of the transistor. (b) Find the time constants associated with CC1 and CC2. (c) Is there a dominant −3 dB frequency? Estimate the −3 dB frequency. Figure P7.24

7.24 The parameters of the transistor in the circuit in Figure P7.24 are VBE( on ) = 0.7 V, β = 100, and VA = ∞. (a) Determine the quiescent and small-signal parameters of the transistor. (b) Find the time constants associated with CC1 and CC2. (c) Is there a dominant −3 dB frequency? Estimate the −3 dB frequency. Figure P7.24

Image text
Figure P7.24 7.24 The parameters of the transistor in the circuit in Figure P7.24 are V B E ( on ) = 0.7 V , β = 100 , and V A = ∞ . (a) Determine the quiescent and small-signal parameters of the transistor. (b) Find the time constants associated with C C 1 and C C 2 . (c) Is there a dominant − 3 d B frequency? Estimate the − 3 d B frequency.

Detailed Answer

3 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (3)
  • Correct answers (3)
  • Complete solution (3)
  • Step-by-step solution (3)
  • Fully explained (3)

Similar/Related Questions

Figure Q2 shows a BJT differential amplifier stage that uses a tail resistor, RO, to provide a bias current, IQ. Transistor parameters are VBE(on) = 0.7 V, β = 100, and VA = ∞. Also, Vcc = 15 V, −VEE = −15 V, RO = 56 kΩ, and RC = 15 kΩ. Figure Q2: Differential Amplifier (a) To calculate the transistor Q-points, what are the values you would assume for vB1 and vB2 ? (b) Determine the bias currents, IC1 and IC2, of the amplifier. (c) For a single-sided output, determine the differential-mode voltage gain (Ad), the commonmode voltage gain (Acm), the differential input impedance (Rid), the common-mode input impedance (Ricm), and the common-mode rejection ratio (CMRR) in dB for the differential amplifier. Assume a signal source resistance of 50 Ω on each input. (d) Will changing RC affect the amplifier CMRR? (e) Suggest two changes to this amplifier each of which would allow the CMRR to be increased. For each, give a reason why the change would have the desired effect.

Solution
0 0

In Figure Q3, a voltage divider biased network for a CE amplifier circuit is shown. The transistor parameters are VBE(on) = 0.7 V, VCE(sat) = 0.2 V, β = 100, and VA = ∞. Figure Q3: CE Amplifier Bias Network (a) What is the advantage of emitter resistor RE ? (b) If VE is maintained at 1 V at the Q-point, estimate the maximum possible swing at the output terminal (vO). Justify your reasons. Determine a suitable DC value for collector voltage to be able to achieve the maximum swing. (c) What are VCEQ and ICQ ? (d) Determine values for R1 and R2. (e) A student has implemented this circuit on a breadboard to test the Q-point before applying AC input signal vI. Measurement results show that the collector voltage is equal to 25 V even though the values of R1, R2, and RE appear to be correct. What could be the reason(s) for this unexpected result? Explain where and what you would check in the circuit.

Solution
0 0

For the circuit shown in Figure. 5, consider the circuit parameters as VCC = VEE = 3.3 V, RS = 500 kΩ, RL = 6 kΩ, RB = 100 kΩ, RE = 12 kΩ, and RC = 12 kΩ. The transistor parameters are: β = 120, VBE(on) = 0.7 V, and VA = ∞. (a) Calculate the Q-point values (ICQ, VCEQ) using DC analysis, (b) Determine the small-signal hybrid−π parameters (rπ, gm, ro), (c) Find the small-signal voltage gain Av = vo/vs, (d) Find the small-signal current gain Ai = io/ii, (e) Determine the input resistance Ri and output resistance Ro. [30 Marks] Figure. 5
