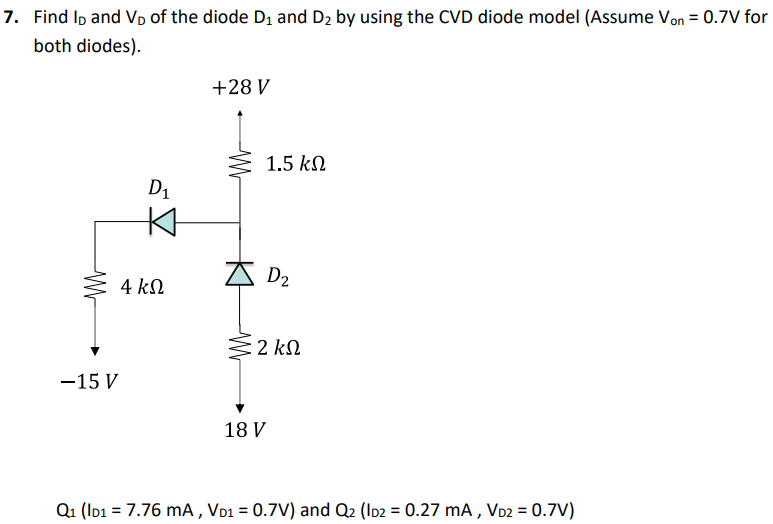

7. Find ID and VD of the diode D1 and D2 by using the CVD diode model (Assume Von = 0.7 V for both diodes). Q1 (ID1 = 7.76 mA, VD1 = 0.7 V) and Q2 (ID2 = 0.27 mA, VD2 = 0.7 V)

7. Find ID and VD of the diode D1 and D2 by using the CVD diode model (Assume Von = 0.7 V for both diodes). Q1 (ID1 = 7.76 mA, VD1 = 0.7 V) and Q2 (ID2 = 0.27 mA, VD2 = 0.7 V)

Image text
7. Find ID and VD of the diode D1 and D2 by using the CVD diode model (Assume Von = 0.7 V for both diodes). Q1 (ID1 = 7.76 mA, VD1 = 0.7 V) and Q2 (ID2 = 0.27 mA, VD2 = 0.7 V)

Detailed Answer

3 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (3)
  • Correct answers (3)
  • Complete solution (3)
  • Step-by-step solution (3)
  • Fully explained (3)

Similar/Related Questions

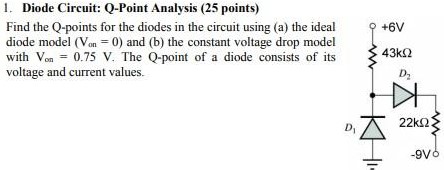

Find the Q-points for the diodes in the circuit using (a) the ideal diode model (Von = 0) and (b) the constant voltage drop model with Von = 0.75 V. The Q-point of a diode consists of its voltage and current values.
Solution
0 0

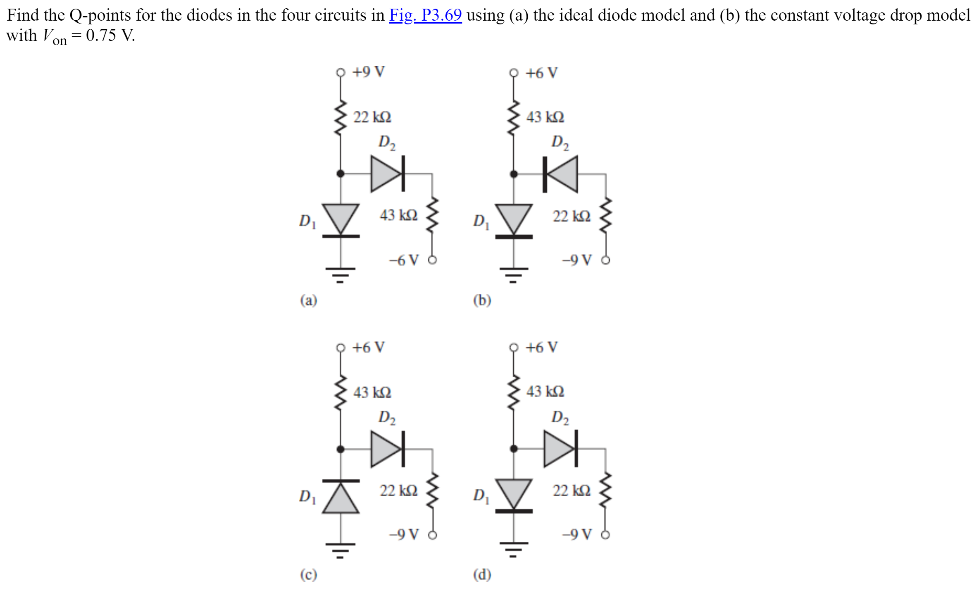

Find the Q-points for the diodes in the four circuits in Fig. P3.69 using (a) the ideal diode model and (b) the constant voltage drop model with Von = 0.75 V.
