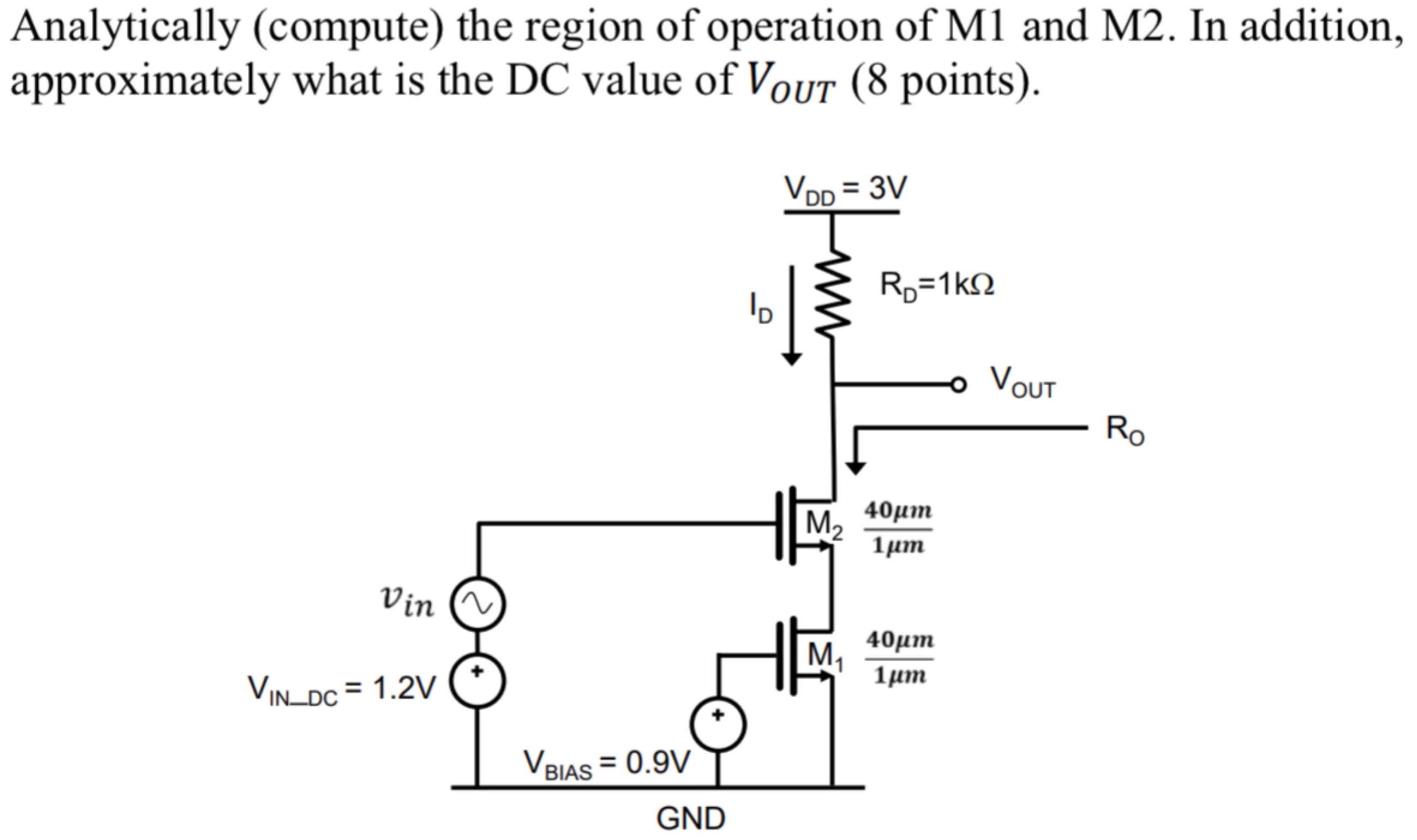

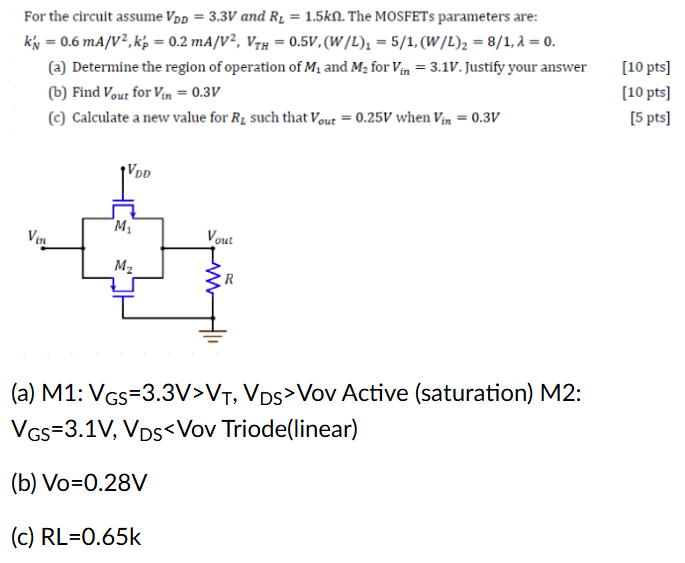

a) Analytically (compute) the region of operation of M1 and M2. In addition, approximately what is the DC value of VOUT (8 points).

a) Analytically (compute) the region of operation of M1 and M2. In addition, approximately what is the DC value of VOUT (8 points).

Image text
a) Analytically (compute) the region of operation of M1 and M2. In addition, approximately what is the DC value of VOUT (8 points).

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)
  • Correct answers (1)
  • Complete solution (1)
  • Step-by-step solution (1)
  • Fully explained (1)

Similar/Related Questions

In the following circuit, assume that λ = γ = 0, VDD = 3 V, |VTH| = 0.5 V, μPCox = 20 μA/V2. Furthermore, assume that vin is a small signal source and Vbias1 = 1.5 V and the DC level of Vout1 and Vout2 are all equal to 0.5 V and 1.5 V, respectively. Also, assume that the bias current of M1 is twice that of M2. (Hint: ID = 1/2μpCOX(W/L) (|VGS| − |VTH|)^2, in saturation) (1) What is the region of operation of M1 and M2? (10 points) (2) If the overall power consumption is 3 mW, find R1, R2, (W/L)1, (W/L)2. (15 points) (3) What is the small signal gain of the circuit (vout2/vin)? Assume there is no parasitic effect and gm1 = gm2 = 4/3 mV/V. (15points)
Solution
0 0

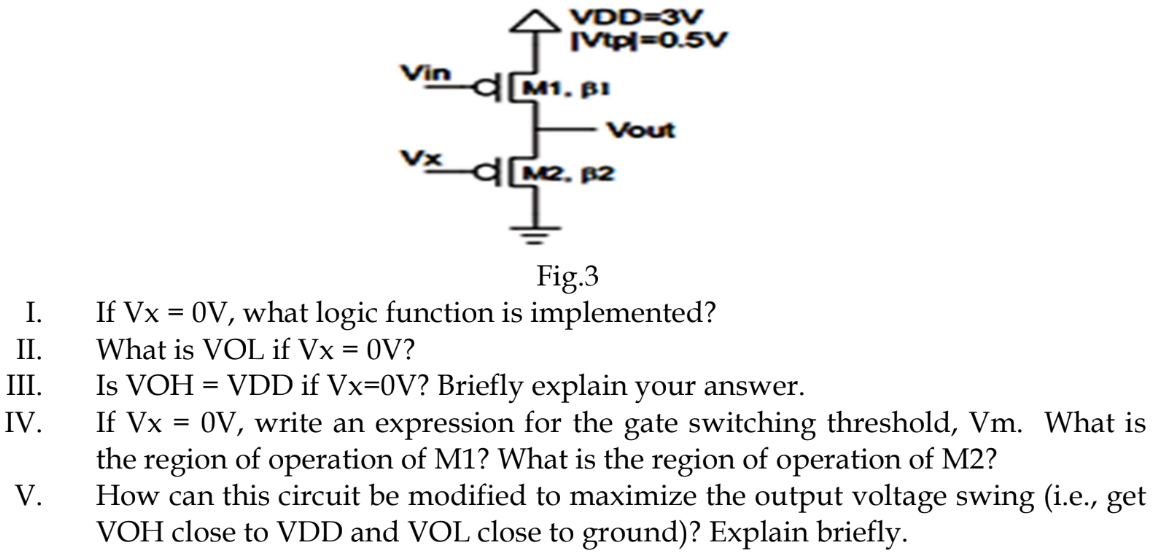

Fig. 3 I. If Vx = 0 V, what logic function is implemented? II. What is VOL if Vx = 0 V? III. Is VOH = VDD if Vx = 0 V? Briefly explain your answer. IV. If Vx = 0 V, write an expression for the gate switching threshold, Vm. What is the region of operation of M1? What is the region of operation of M2? V. How can this circuit be modified to maximize the output voltage swing (i.e., get VOH close to VDD and VOL close to ground)? Explain briefly.
Solution
0 0

A CMOS amplifier is shown in Figure 3. PMOS transistors M1 and M2 have μpCox = 60 μA/V2, Vtp = −0.4 V, |1/λp| = 100 V, W = 240 μm and L = 1.6 μm. The NMOS transistor M0 has parameters μnCox = 90 μA/V2, Vtn = 0.4 V, 1/λn = 100 V, W = 160 μm and L = 1.6 μm. VDD = 5 V and Rref = 100 kΩ. Figure 3 (i) Calculate the current flowing in the reference resistor Rref . (ii) Sketch Vo as a function of Vi, indicating the regions of operation of the transistors. (iii) Calculate the small-signal voltage gain vo/vi when M0 and M1 are biased in their saturated regions of operation. (iv) If the DC and small-signal components of Vi and Vo are denoted ViQ, VoQ and vi, vo respectively, what value of voltage ViQ is required to give ID0Q = 45 μA? To simplify the calculation, you may neglect channel length modulation effects. (v) Calculate the numerical value of the small-signal voltage gain vo/vi when ViQ has the value derived in part (iv).
