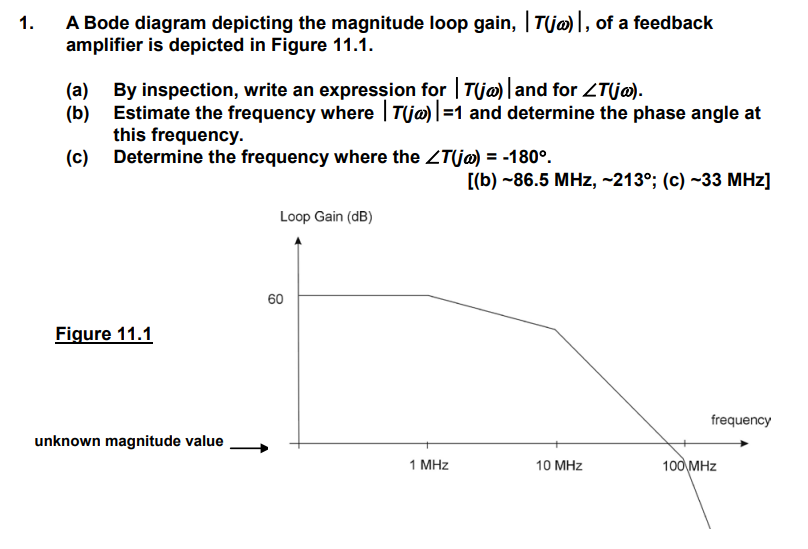

A Bode diagram depicting the magnitude loop gain, |T(jw)|, of a feedback amplifier is depicted in Figure 11.1. (a) By inspection, write an expression for |T(jw)| and for ∠T(jw). (b) Estimate the frequency where |T(jw)| = 1 and determine the phase angle at this frequency. (c) Determine the frequency where the ∠T(jw) = -180°. [(b) -86.5 MHz, ~213°; (c) ~33 MHz]
