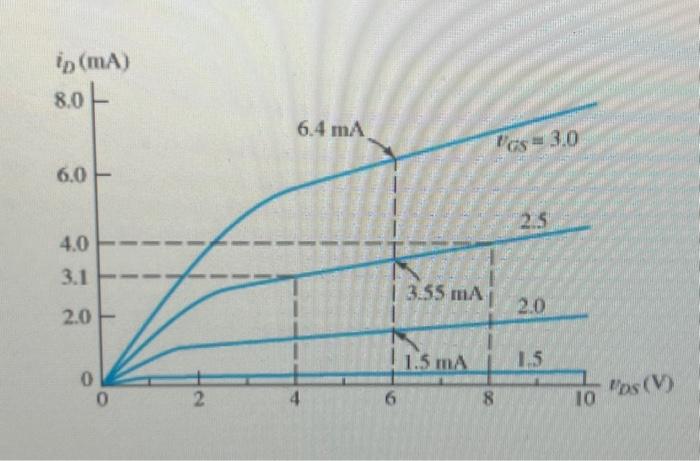

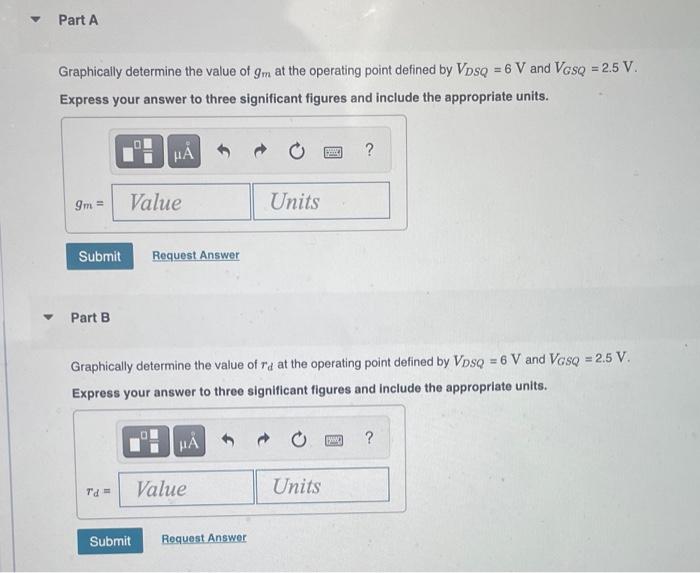

A certain NMOS transistor has the characteristics shown in (figure 1) Graphically determine the value of gm at the operating point defined by VDSQ = 6 V and VGSQ = 2.5 V Express your answer to three significant figures and include the appropriate units. Graphically determine the value of rd at the operating point defined by VDSQ = 6 V and VGSQ = 2.5 V Express your answer to three significant figures and include the appropriate units.
