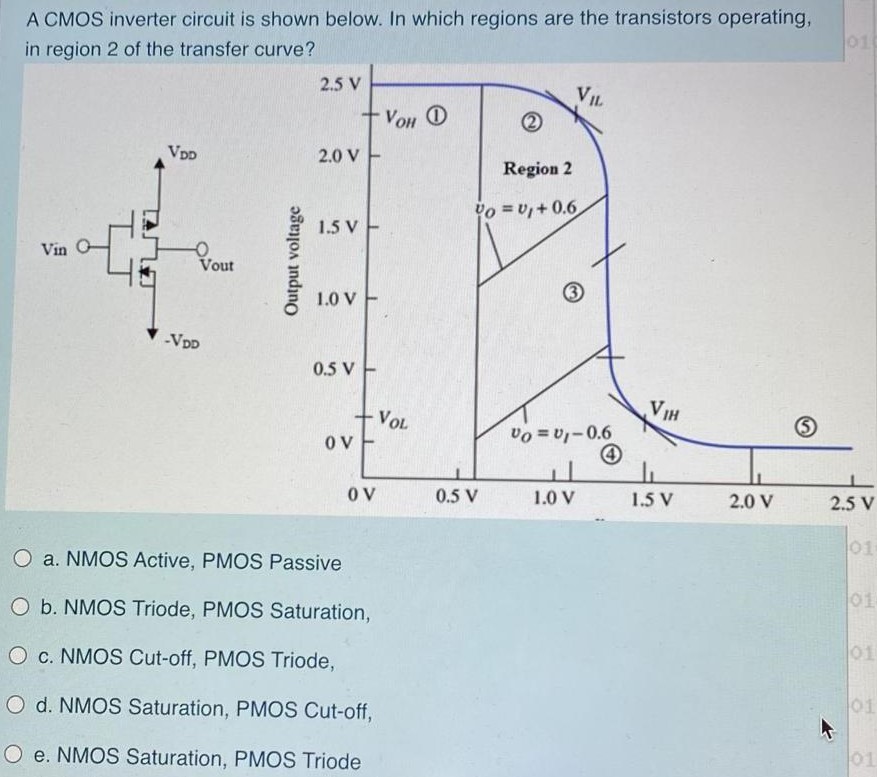

A CMOS inverter circuit is shown below. In which regions are the transistors operating, in region 2 of the transfer curve? a. NMOS Active, PMOS Passive b. NMOS Triode, PMOS Saturation, c. NMOS Cut-off, PMOS Triode, d. NMOS Saturation, PMOS Cut-off, e. NMOS Saturation, PMOS Triode

A CMOS inverter circuit is shown below. In which regions are the transistors operating, in region 2 of the transfer curve? a. NMOS Active, PMOS Passive b. NMOS Triode, PMOS Saturation, c. NMOS Cut-off, PMOS Triode, d. NMOS Saturation, PMOS Cut-off, e. NMOS Saturation, PMOS Triode

Image text
A CMOS inverter circuit is shown below. In which regions are the transistors operating, in region 2 of the transfer curve? a. NMOS Active, PMOS Passive b. NMOS Triode, PMOS Saturation, c. NMOS Cut-off, PMOS Triode, d. NMOS Saturation, PMOS Cut-off, e. NMOS Saturation, PMOS Triode

Detailed Answer

2 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (2)
  • Correct answers (2)
  • Complete solution (2)
  • Step-by-step solution (2)
  • Fully explained (2)

Similar/Related Questions

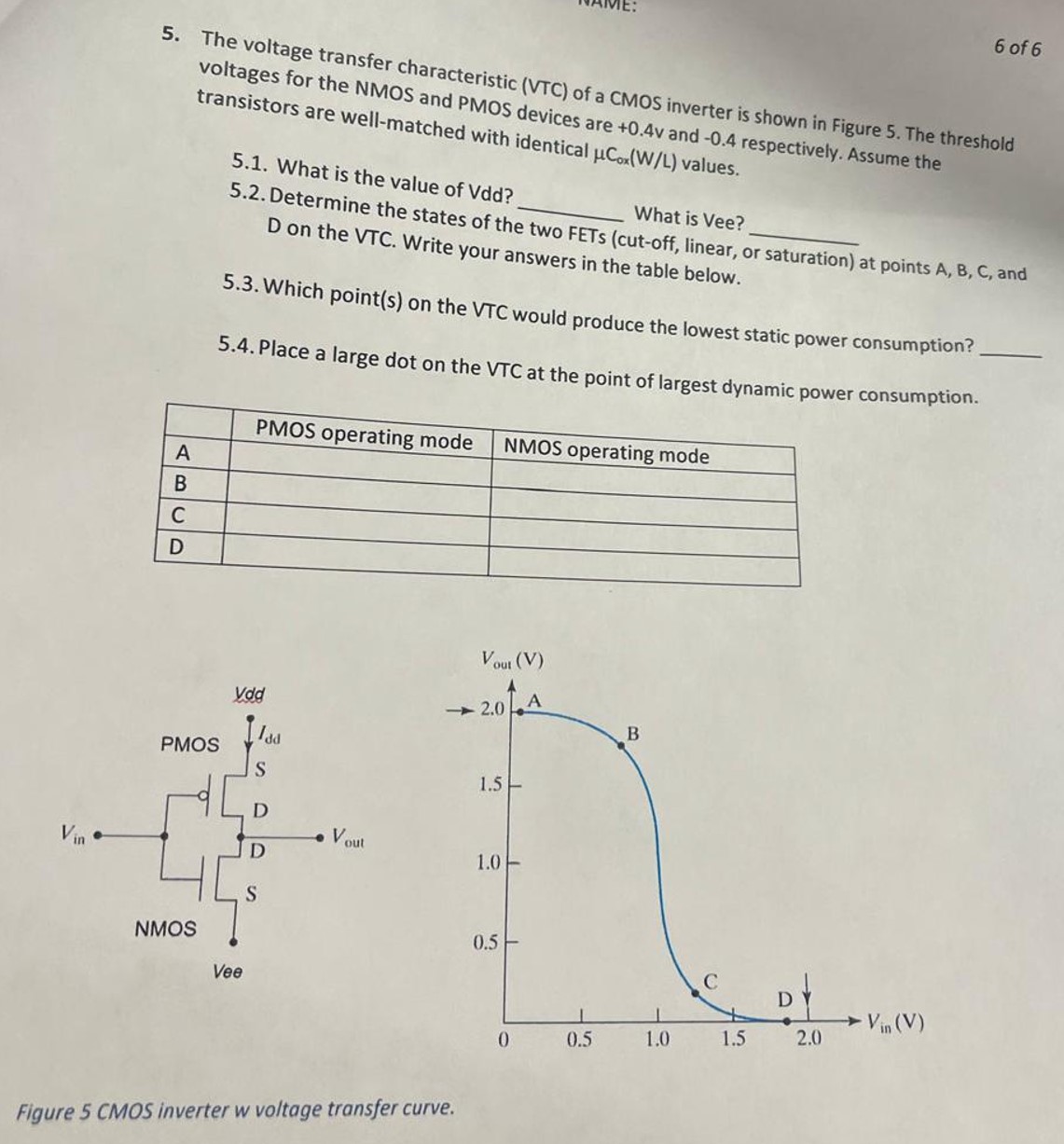

5. The voltage transfer characteristic (VTC) of a CMOS inverter is shown in Figure 5 . The threshold voltages for the NMOS and PMOS devices are +0.4V and -0.4 respectively. Assume the transistors are well-matched with identical μCox(W/L) values. 5.1. What is the value of Vdd? What is Vee? 5.2. Determine the states of the two FETs (cut-off, linear, or saturation) at points A, B, C, and D on the VTC. Write your answers in the table below. 5.3. Which point(s) on the VTC would produce the lowest static power consumption? 5.4. Place a large dot on the VTC at the point of largest dynamic power consumption.Figure 5 CMOS inverter w voltage transfer curve.
Solution
0 0

A CMOS inverter show below with all required parameters. kn′ = 100 μA/V2, VT0n = 0.75 v, kp′ = 40 μA/V2, VT0p = −0.8 v Vin (input voltage to the inverter) a. Calculate the inverter threshold VM ? ( 5 points) b. Explain the inverter regions of operation with respect to slowly rising ramp signal from logic "0" to logic "1" as shown in figure? , Explain clearly using the transfer characteristic of the inverter, the status of NMOS and PMOS when you increase the input voltage from 0 V to VTN and to VDD/2 and to VDD−VTn and VDD in time T. ( 15 points) c. When does NMOS and PMOS bias itself to saturation and why this is a danger in integrated circuit design. What are possible solutions to suppress this issue? (5 points)

Solution
0 0

Vtn = 0.8 V, Vtp = -0.9 V, a) Find the logic expression for Z. What function does this circuit implement? b) Draw the pull-up network that completes the CMOS logic circuit. c) Assume that the equivalent inverter has an NMOS transistor with a minimum size of 2 um/250 nm. Determine the equivalent PMOS transistor dimensions (W/L) that ensure tPHL = tPLH for the equivalent inverter. d) Find the NMOS and PMOS transistor dimensions in the CMOS logic circuit so that the propagation delays are equal to the value you found for the inverter in c) for the worst case, assuming an equal load capacitance for both the inverter and the logic circuit. Vtn = 0.8 V, Vtp = -0.9 V, unCox = 250 uA/V2, upCox = 120 uA/V2 is given. The pull-down section of a CMOS logic circuit is shown below. = 250 a) Find the logic expression for Z. What function does this circuit implement? b) Draw the pull-up network that completes the CMOS logic circuit. c) Assume that the equivalent inverter has an NMOS transistor with a minimum size of 2 um/250 nm. Determine the equivalent PMOS transistor dimensions (W/L) that ensure tPHL = tPLH for the equivalent inverter. d) Find the NMOS and PMOS transistor dimensions in the CMOS logic circuit so that the propagation delays are equal to the value you found for the inverter in c) for the worst case, assuming an equal load capacitance for both the inverter and the logic circuit. Vtn = 0.8 V, Vtp = -0.9 V, unCox = 250 uA/V2, upCox = 120 uA/V2 is given. The pull-down section of a CMOS logic circuit is shown below., a) Find the logic expression for Z. What function does this circuit implement? b) Draw the pull-up network that completes the CMOS logic circuit. c) Assume that the equivalent inverter has an NMOS transistor with a minimum size of 2 um/250 nm. Determine the equivalent PMOS transistor dimensions (W/L) that ensure tPHL = tPLH for the equivalent inverter. d) Find the NMOS and PMOS transistor dimensions in the CMOS logic circuit so that the propagation delays are equal to the value you found for the inverter in c) for the worst case, assuming an equal load capacitance for both the inverter and the logic circuit. Vtn = 0.8 V, Vtp = -0.9 V, unCox = 250 uA/V2, upCox = 120 uA/V2 is given. The pull-down section of a CMOS logic circuit is shown below. =120 a) Find the logic expression for Z. What function does this circuit implement? b) Draw the pull-up network that completes the CMOS logic circuit. c) Assume that the equivalent inverter has an NMOS transistor with a minimum size of 2 um/250 nm. Determine the equivalent PMOS transistor dimensions (W/L) that ensure tPHL = tPLH for the equivalent inverter. d) Find the NMOS and PMOS transistor dimensions in the CMOS logic circuit so that the propagation delays are equal to the value you found for the inverter in c) for the worst case, assuming an equal load capacitance for both the inverter and the logic circuit. Vtn = 0.8 V, Vtp = -0.9 V, unCox = 250 uA/V2, upCox = 120 uA/V2 is given. The pull-down section of a CMOS logic circuit is shown below. is given. The pull-down section of a CMOS logic circuit is shown below.

a) Find the logic expression for Z. What function does this circuit implement?

b) Draw the pull-up network that completes the CMOS logic circuit.

c) Assume that the equivalent inverter has an NMOS transistor with a minimum size of 2 müm/250 nm. Determine the equivalent PMOS transistor dimensions (W/L) that ensure a) Find the logic expression for Z. What function does this circuit implement? b) Draw the pull-up network that completes the CMOS logic circuit. c) Assume that the equivalent inverter has an NMOS transistor with a minimum size of 2 um/250 nm. Determine the equivalent PMOS transistor dimensions (W/L) that ensure tPHL = tPLH for the equivalent inverter. d) Find the NMOS and PMOS transistor dimensions in the CMOS logic circuit so that the propagation delays are equal to the value you found for the inverter in c) for the worst case, assuming an equal load capacitance for both the inverter and the logic circuit. Vtn = 0.8 V, Vtp = -0.9 V, unCox = 250 uA/V2, upCox = 120 uA/V2 is given. The pull-down section of a CMOS logic circuit is shown below. for the equivalent inverter.

d) Find the NMOS and PMOS transistor dimensions in the CMOS logic circuit so that the propagation delays are equal to the value you found for the inverter in c) for the worst case, assuming an equal load capacitance for both the inverter and the logic circuit.

a) Find the logic expression for Z. What function does this circuit implement? b) Draw the pull-up network that completes the CMOS logic circuit. c) Assume that the equivalent inverter has an NMOS transistor with a minimum size of 2 um/250 nm. Determine the equivalent PMOS transistor dimensions (W/L) that ensure tPHL = tPLH for the equivalent inverter. d) Find the NMOS and PMOS transistor dimensions in the CMOS logic circuit so that the propagation delays are equal to the value you found for the inverter in c) for the worst case, assuming an equal load capacitance for both the inverter and the logic circuit. Vtn = 0.8 V, Vtp = -0.9 V, unCox = 250 uA/V2, upCox = 120 uA/V2 is given. The pull-down section of a CMOS logic circuit is shown below.
Solution
