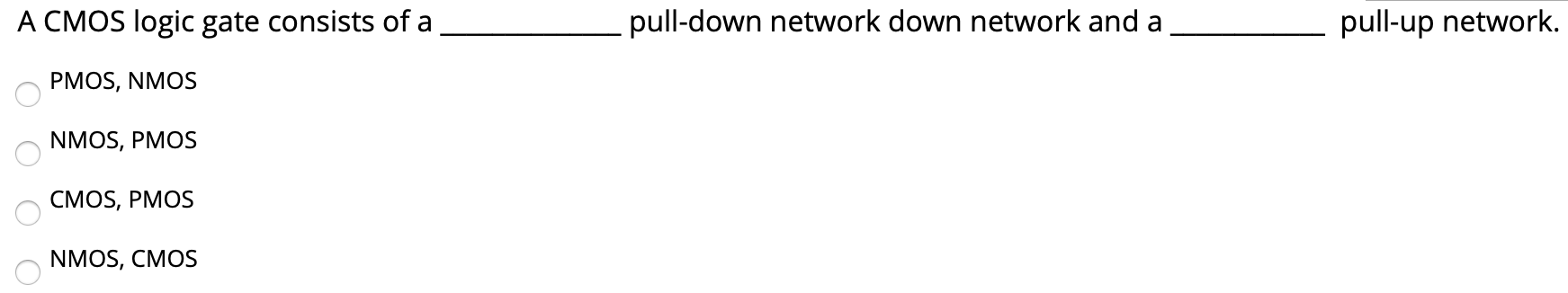

A CMOS logic gate consists of a pull-down network down network and a pull-up network. PMOS, NMOS NMOS, PMOS CMOS, PMOS NMOS, CMOS

A CMOS logic gate consists of a pull-down network down network and a pull-up network. PMOS, NMOS NMOS, PMOS CMOS, PMOS NMOS, CMOS

Image text
A CMOS logic gate consists of a pull-down network down network and a pull-up network.
PMOS, NMOS NMOS, PMOS CMOS, PMOS NMOS, CMOS

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

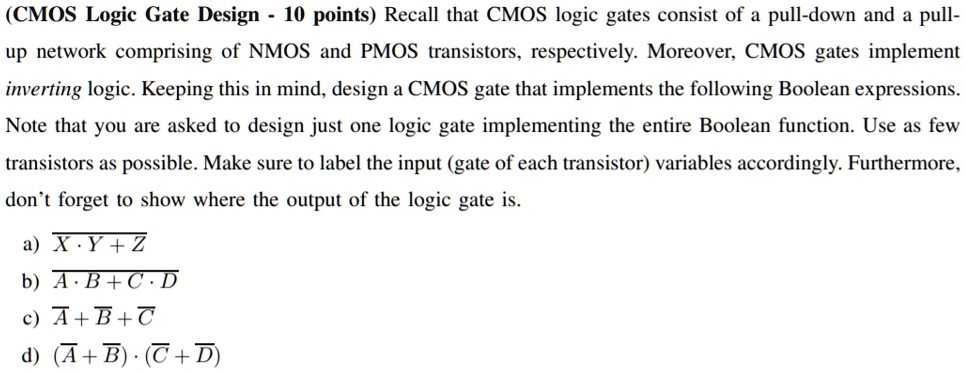

(CMOS Logic Gate Design - 10 points) Recall that CMOS logic gates consist of a pull-down and a pull-up network comprising of NMOS and PMOS transistors, respectively. Moreover, CMOS gates implement inverting logic. Keeping this in mind, design a CMOS gate that implements the following Boolean expressions. Note that you are asked to design just one logic gate implementing the entire Boolean function. Use as few transistors as possible. Make sure to label the input (gate of each transistor) variables accordingly. Furthermore, don’t forget to show where the output of the logic gate is. a) X • Y + Z b) A • B + C • D c) A¯ + B¯ + C¯ d) (A¯ + B¯) • (C¯ + D¯)
Solution
0 0

A full-adder is a basic combinational block used to build complex digital circuits. It is basically a 1-bit adder, that computes the sum S and output carry Cout of two input bits, A and B, plus the initial input carry Cin. The truth table of the full-adder is shown below. Cin A B S Cout 0 0 0 0 0 0 0 1 1 0 0 1 0 1 0 0 1 1 0 1 1 0 0 1 0 1 0 1 0 1 1 1 0 0 1 1 1 1 1 1 1. Derive the logic functions for S and Cout. Use only AND, OR, and negation operators in your expressions. You can use whatever method you like (boolean algebra, Karnaugh maps, etc.). 2. Implement both of the functions as static CMOS logic gates (at most followed by an inverter). Draw the transistor-level schematics. You can assume that both the direct and negated versions of each input are available. 3. Size all the devices in the pull-up (PU) networks of your gates, so that the equivalent resistance of each PU is the same as that of a PMOS with W/L = 2. Repeat for the pull-down (PD) networks and a reference NMOS with W/L = 1. When you size a transistor network, you should always consider the input logic values that yield the worst-case equivalent resistance. Neglect the effect of internal node capacitances.
Solution
0 0

This is an incomplete complex CMOS logic gate in which only the NMOS transistors of the pull-down network (PDN) are displayed, but not the pull-up network (PUN) transistors. a) Write the logic function for the output (Y) based on the shown PDN configuration. b) Use De Morgan's laws to rearrange the logic function from expression from part (a) to obtain an expression which the configuration of PMOS transistors in the PUN can be designed directly. c) Draw the corresponding schematic of the PUN.

Solution
1 0
