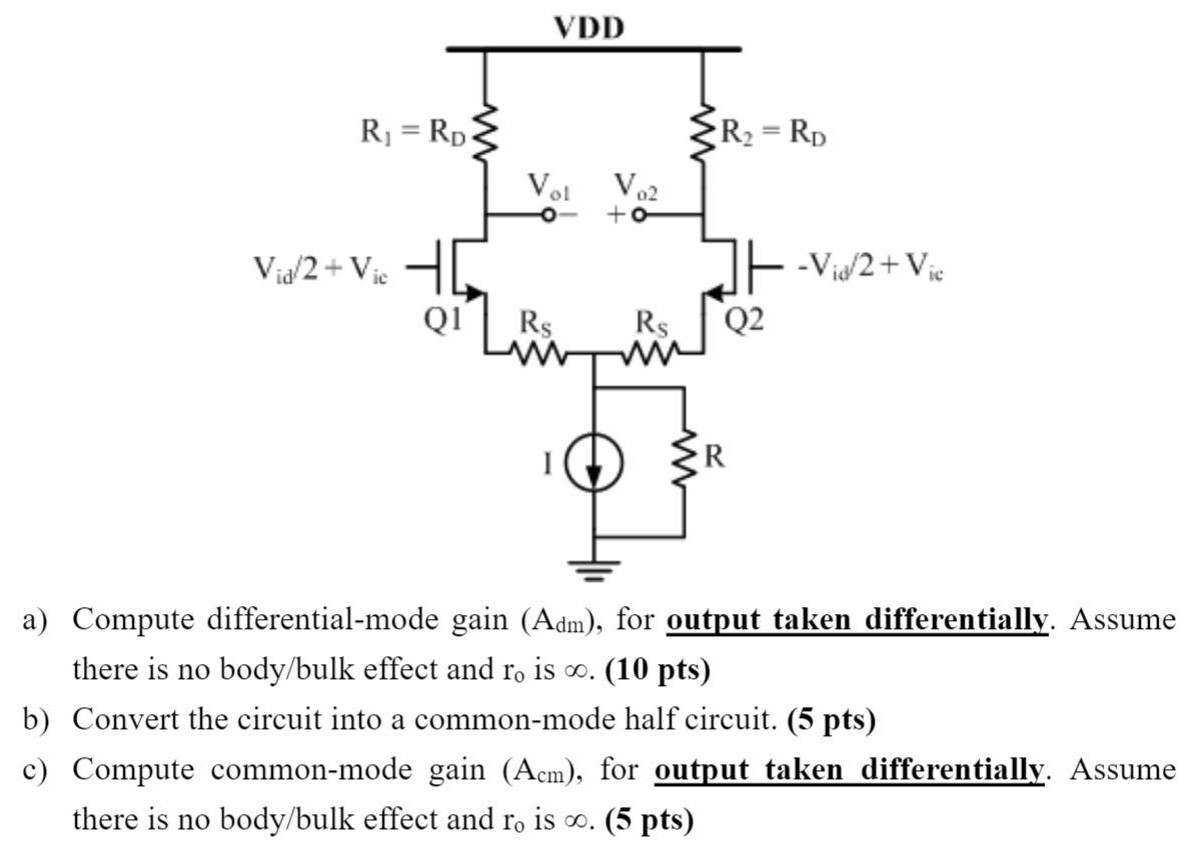

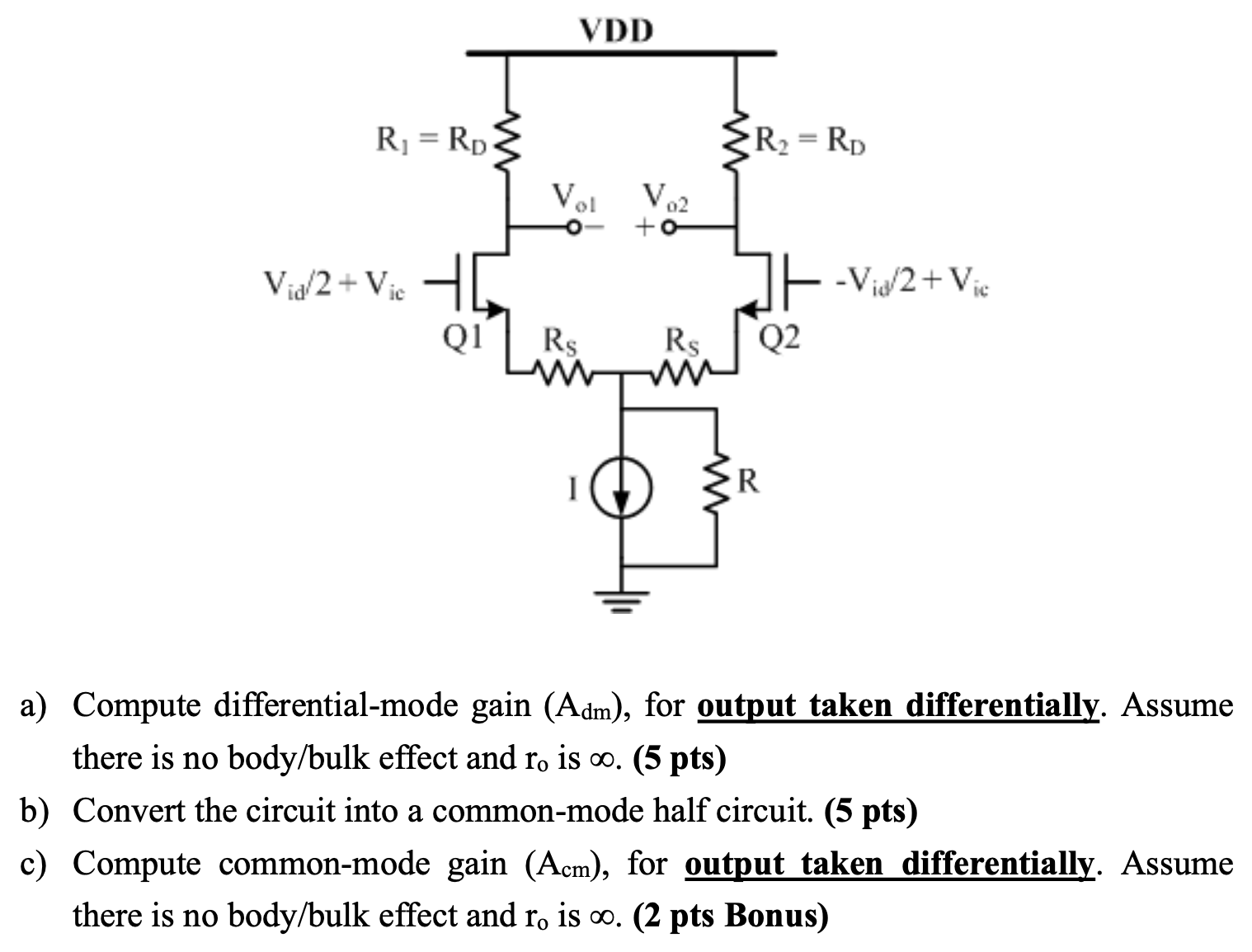

a) Compute differential-mode gain (Adm), for output taken differentially. Assume there is no body/bulk effect and ro is ∞. (10 pts) b) Convert the circuit into a common-mode half circuit. (5 pts) c) Compute common-mode gain (Acm), for output taken differentially. Assume there is no body/bulk effect and ro is ∞. (5 pts)

a) Compute differential-mode gain (Adm), for output taken differentially. Assume there is no body/bulk effect and ro is ∞. (10 pts) b) Convert the circuit into a common-mode half circuit. (5 pts) c) Compute common-mode gain (Acm), for output taken differentially. Assume there is no body/bulk effect and ro is ∞. (5 pts)

Image text
a) Compute differential-mode gain ( A d m ) , for output taken differentially. Assume there is no body/bulk effect and r 0 is ∞ . (10 pts) b) Convert the circuit into a common-mode half circuit. (5 pts) c) Compute common-mode gain ( A c m ) , for output taken differentially. Assume there is no body/bulk effect and r o is ∞ . (5 pts)
