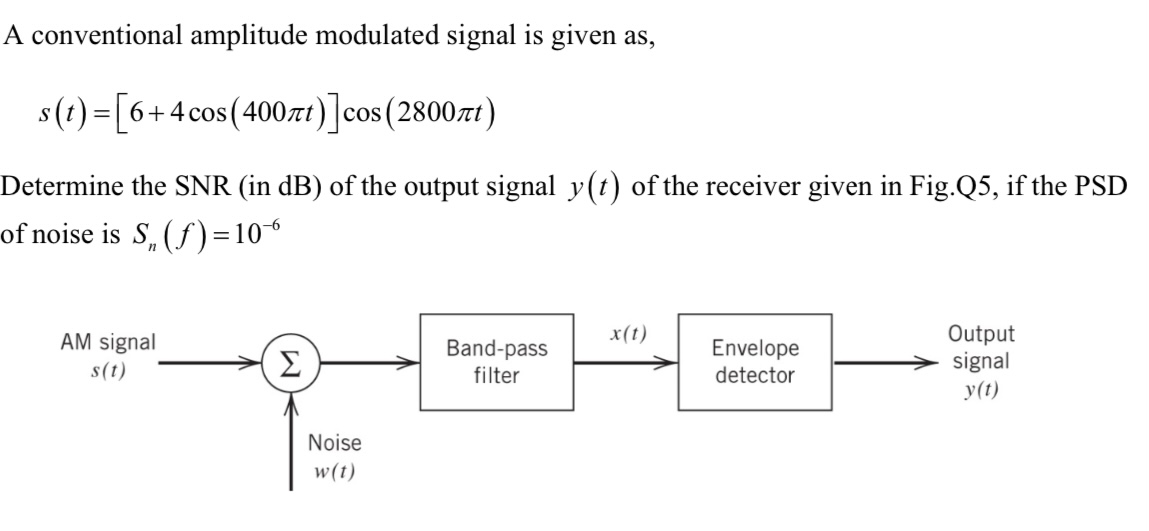

A conventional amplitude modulated signal is given as, s(t) = [6 + 4cos⁡(400πt)]cos⁡(2800πt) Determine the SNR (in dB) of the output signal y(t) of the receiver given in Fig. Q5, if the PSD of noise is Sn(f) = 10−6
