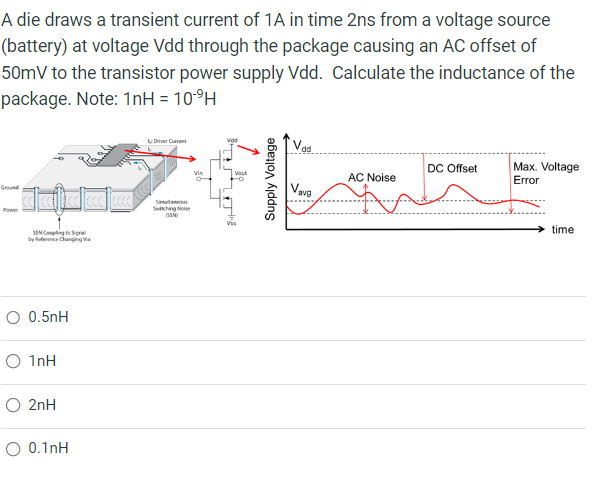

A die draws a transient current of 1 A in time 2 ns from a voltage source (battery) at voltage Vdd through the package causing an AC offset of 50 mV to the transistor power supply Vdd. Calculate the inductance of the package. Note: 1 nH = 10 −9 H 0.5 nH 1 nH 2 nH 0.1 nH

A die draws a transient current of 1 A in time 2 ns from a voltage source (battery) at voltage Vdd through the package causing an AC offset of 50 mV to the transistor power supply Vdd. Calculate the inductance of the package. Note: 1 nH = 10 −9 H 0.5 nH 1 nH 2 nH 0.1 nH

Image text
A die draws a transient current of 1 A in time 2 n s from a voltage source (battery) at voltage Vdd through the package causing an AC offset of 50 m V to the transistor power supply Vdd. Calculate the inductance of the package. Note: 1 n H = 10 − 9 H 0.5 n H 1 n H 2 n H 0.1 n H
