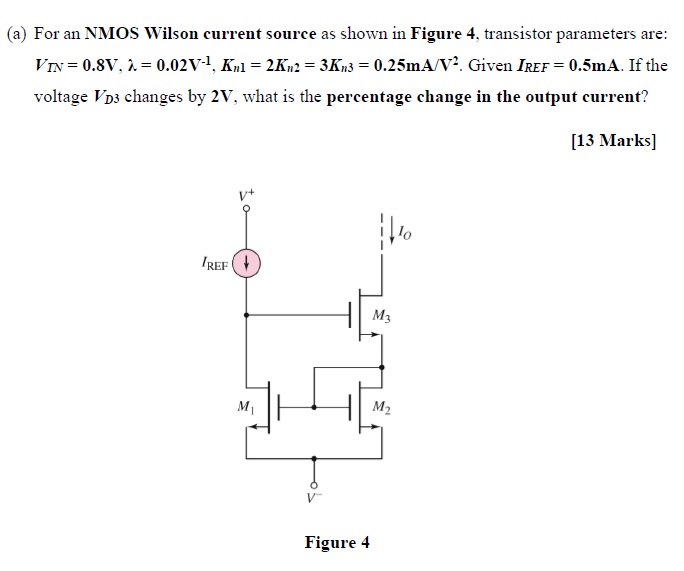

(a) For an NMOS Wilson current source as shown in Figure 4, transistor parameters are: VTN = 0.8 V, λ = 0.02 V−1, Kn1 = 2Kn2 = 3Kn3 = 0.25 mA/V2. Given IREF = 0.5 mA. If the voltage VD changes by 2 V, what is the percentage change in the output current? [13 Marks] Figure 4

(a) For an NMOS Wilson current source as shown in Figure 4, transistor parameters are: VTN = 0.8 V, λ = 0.02 V−1, Kn1 = 2Kn2 = 3Kn3 = 0.25 mA/V2. Given IREF = 0.5 mA. If the voltage VD changes by 2 V, what is the percentage change in the output current? [13 Marks] Figure 4

Image text
(a) For an NMOS Wilson current source as shown in Figure 4, transistor parameters are: V T N = 0.8 V , λ = 0.02 V − 1 , K n 1 = 2 K n 2 = 3 K n 3 = 0.25 m A / V 2 . Given I R E F = 0.5 m A . If the voltage V D changes by 2 V , what is the percentage change in the output current? [13 Marks] Figure 4

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

To improve the performance of the differential amplifier shown in Figure Q1, the biasing current source is replaced by a Widlar current source. The collector resistors are replaced by a current mirror formed by the matched bipolar transistors Qs and Q6, and the bipolar transistors Q1 and Q2 are replaced by the matched field-effect transistors M1 and M2. A single-sided output at the drain terminal of M2 is used. The transistor parameters for the bipolar transistors are: β = 100, VBE (on) = VEB(on) = 0.7 V, and VA = 100 V. The transistor parameters for M1 and M2 are: Kn = 0.15 mA/V2, VT N = 0.8 V, λ = 0.01 V-1 . The improved differential amplifier is shown in Figure Q2. (a) Determine the quiescent voltages and currents of M1 and M2 when v1 = v2 = 0. (4 marks) (b) Design the value of resistor RE such that IQ = 0.1 mA. (2 marks) (c) Determine the maximum and minimum common-mode voltages that can be applied to v1 and v2. (3 marks) (d) Determine the percentage change in IQ when the common-mode voltage applied to v1 and v2 changes from the maximum to the minimum value obtained in part (c). (5 marks) (c) Define vd = v1 - v2, determine the differential-mode voltage gain Ad of the improved differential amplifier.
Solution
0 0

Ex 4.2: For the circuit shown in Figure 4.1, VDD = 3.3 V and RD = 10 kΩ. The transistor parameters are VTN = 0.4 V, kn′ = 100 μA/V2, W/L = 50, and λ = 0.025 V−1. Assume the transistor is biased such that IDQ = 0.25 mA. (a) Verify that the transistor is biased in the saturation region. (b) Determine the small-signal parameters gm and ro. (c) Determine the small-signal voltage gain. (Ans. (a) VGSQ = 0.716 V and VDSQ = 0.8 V so that VDS > VDS (sat); (b) gm = 1.58 mA/V, ro = 160 kΩ; (c) -14.9) Figure 4.1 NMOS common-source circuit with time-varying signal source in series with gate dc source

Ex 4.2: For the circuit shown in Figure 4.1, VDD = 3.3 V and RD = 10 kΩ. The transistor parameters are VTN = 0.4 V, kn′ = 100 μA/V2, W/L = 50, and λ = 0.025 V−1. Assume the transistor is biased such that IDQ = 0.25 mA. (a) Verify that the transistor is biased in the saturation region. (b) Determine the small-signal parameters gm and ro. (c) Determine the small-signal voltage gain. (Ans. (a) VGSQ = 0.716 V and VDSQ = 0.8 V so that VDS > VDS (sat); (b) gm = 1.58 mA/V, ro = 160 kΩ; (c) -14.9) Figure 4.1 NMOS common-source circuit with time-varying signal source in series with gate dc source
Solution
0 0

a) Refer to the multi-transistor MOSFET current source in Figure 3 below. It is given that V+ = 5V, V− = 0. For the transistors: kn′ = 40 uA/V2, VTN = 1V, and λ = 0. Design the current source such that IREF = 0.25mA, Io1 = 0.10mA, Io2 = 0.5mA and VDS2 (sat) = 0.85 V. Calculate all VGS voltages of the transistors. Figure 3 b) If λ = 0.02V-1, calculate IO2 when VDS2 = 3 V. Use relevant values obtained for Figure 3 in part (a).
