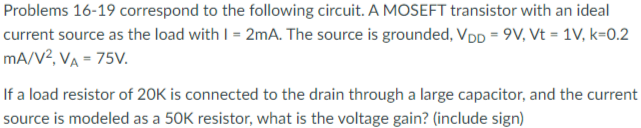

A MOSEFT transistor with an ideal current source as the load with I = 2 mA. The source is grounded, VDD = 9 V, Vt = 1 V, k = 0.2 mA/V2, VA = 75 V. If a load resistor of 20 K is connected to the drain through a large capacitor, and the current source is modeled as a 50 K resistor, what is the voltage gain? (include sign)

A MOSEFT transistor with an ideal current source as the load with I = 2 mA. The source is grounded, VDD = 9 V, Vt = 1 V, k = 0.2 mA/V2, VA = 75 V. If a load resistor of 20 K is connected to the drain through a large capacitor, and the current source is modeled as a 50 K resistor, what is the voltage gain? (include sign)

Image text
A MOSEFT transistor with an ideal current source as the load with I = 2 mA. The source is grounded, VDD = 9 V, Vt = 1 V, k = 0.2 mA/V2, VA = 75 V. If a load resistor of 20 K is connected to the drain through a large capacitor, and the current source is modeled as a 50 K resistor, what is the voltage gain? (include sign)

Detailed Answer
