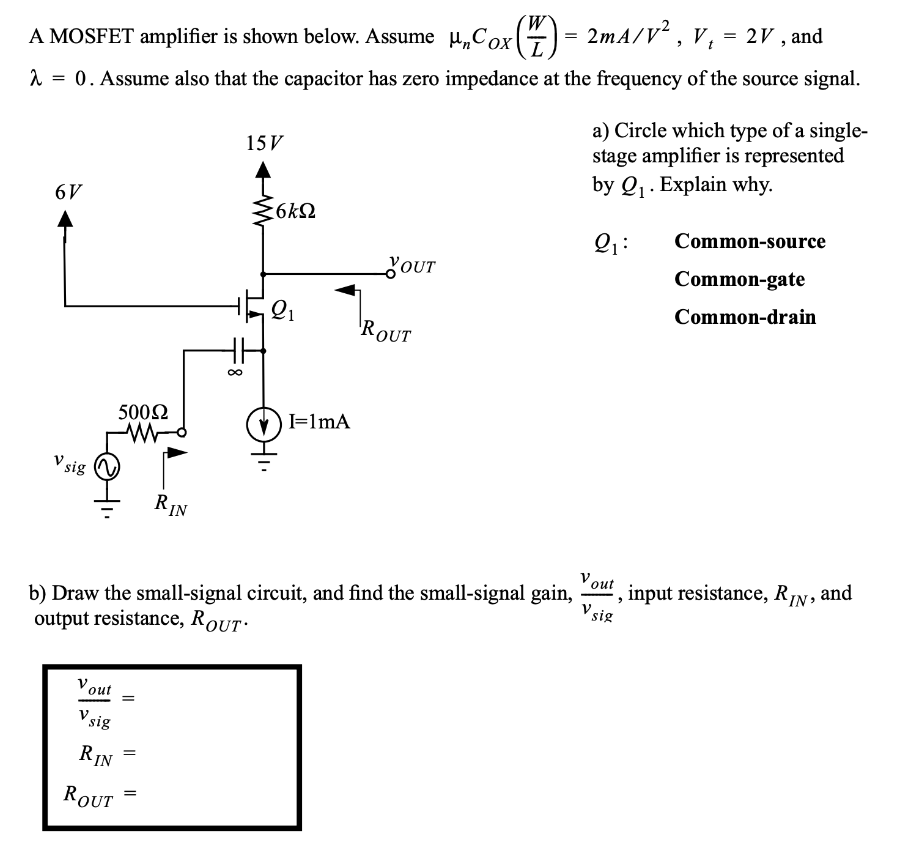

A MOSFET amplifier is shown below. Assume unCOX(W/L) = 2mA/V2 , Vt = 2 V, and λ = 0. Assume also that the capacitor has zero impedance at the frequency of the source signal. a) Circle which type of a single stage amplifier is represented by Q1. Explain why. Q1: Common-source Common-gate Common-drain b) Draw the small-signal circuit, and find the small-signal gain, vout/vsig, input resistance, RIN, and output resistance, ROUT.

A MOSFET amplifier is shown below. Assume unCOX(W/L) = 2mA/V2 , Vt = 2 V, and λ = 0. Assume also that the capacitor has zero impedance at the frequency of the source signal. a) Circle which type of a single stage amplifier is represented by Q1. Explain why. Q1: Common-source Common-gate Common-drain b) Draw the small-signal circuit, and find the small-signal gain, vout/vsig, input resistance, RIN, and output resistance, ROUT.

Image text
A MOSFET amplifier is shown below. Assume unCOX(W/L) = 2mA/V2 , Vt = 2 V, and λ = 0. Assume also that the capacitor has zero impedance at the frequency of the source signal. a) Circle which type of a single stage amplifier is represented by Q1. Explain why. Q1: Common-source Common-gate Common-drain b) Draw the small-signal circuit, and find the small-signal gain, vout/vsig, input resistance, RIN, and output resistance, ROUT.

Detailed Answer

3 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (3)
  • Correct answers (3)
  • Complete solution (3)
  • Step-by-step solution (3)
  • Fully explained (3)

Similar/Related Questions

Q6. An amplifier circuit using an n-MOSFET is shown in Fig. Q6. The n-MOSFET has the following parameters: Kn = 1 mA/V2 and λ = 0.02 V−1. vin is a small signal AC voltage source. Fig. Q6 (a) Calculate the DC gate voltage, VG. (b) Assuming that the n-MOSFET is operating in the saturation region and neglecting channel length modulation, calculate the threshold voltage, VTHN, given that the voltage drop across the dc current source, IBUS, has been designed to be approximately 0 V. Verify that the n-MOSFET is operating in the saturation region. (c) Find the values of small signal parameters gm and ro of the n-MOSFET. (d) What is the configuration of the amplifier circuit? (e) Draw the small signal ac equivalent circuit of Fig. Q6. You may assume that in the small signal ac equivalent circuit, all the coupling capacitors behave like short circuits. (f) Calculate the input resistance, Rin, and output resistance, Rout . (g) Calculate the voltage gain, vout/vin.

Solution
0 0

Consider the common-source amplifier shown. The NMOS transistor has KP = 50 μA/V2, Vto = 2 V, λ = 0, L = 10 μm, and W = 400 μm. Find the midband voltage gain, input resistance, and output resistance of the amplifier. If the input source is given by v(t) = 100 sin⁡(2000 Πt)mV compute the output voltage. Assume that the frequency of the source (which is 1000 Hz ) is in the midband region.

Solution
0 0

P11.52. Consider the amplifier shown in Figure P11.52. a. Draw the small-signal equivalent circuit, assuming that the capacitors are short circuits for the signal. b. Assume that rd = ∞, and derive expressions for the voltage gain, input resistance, and output resistance. c. Find IDQ if R = 100 kΩ, Rf = 100 kΩ, RD = 3 kΩ, RL = 10 kΩ, VDD = 20 V, Vto = 5 V, and K = 1 mA/V2. Determine the value of gm at the Q point. d. Evaluate the expressions found in part (b) by using the values given in part (c). e. Find vo(t) if v(t) = 0.2 sin⁡(2000πt). f. Is this amplifier inverting or noninverting? Figure P11.52
