A p-channel transistor operates in saturation with its source voltage 3 V lower than its substrate. For γ = 0.5 V1/2, 2φf = 0.75 V, and Vt0 = −0.7 V, find Vt.

A p-channel transistor operates in saturation with its source voltage 3 V lower than its substrate. For γ = 0.5 V1/2, 2φf = 0.75 V, and Vt0 = −0.7 V, find Vt.

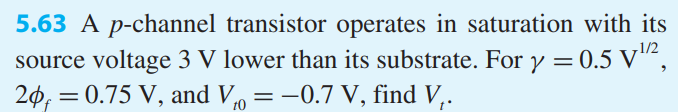

Image text
