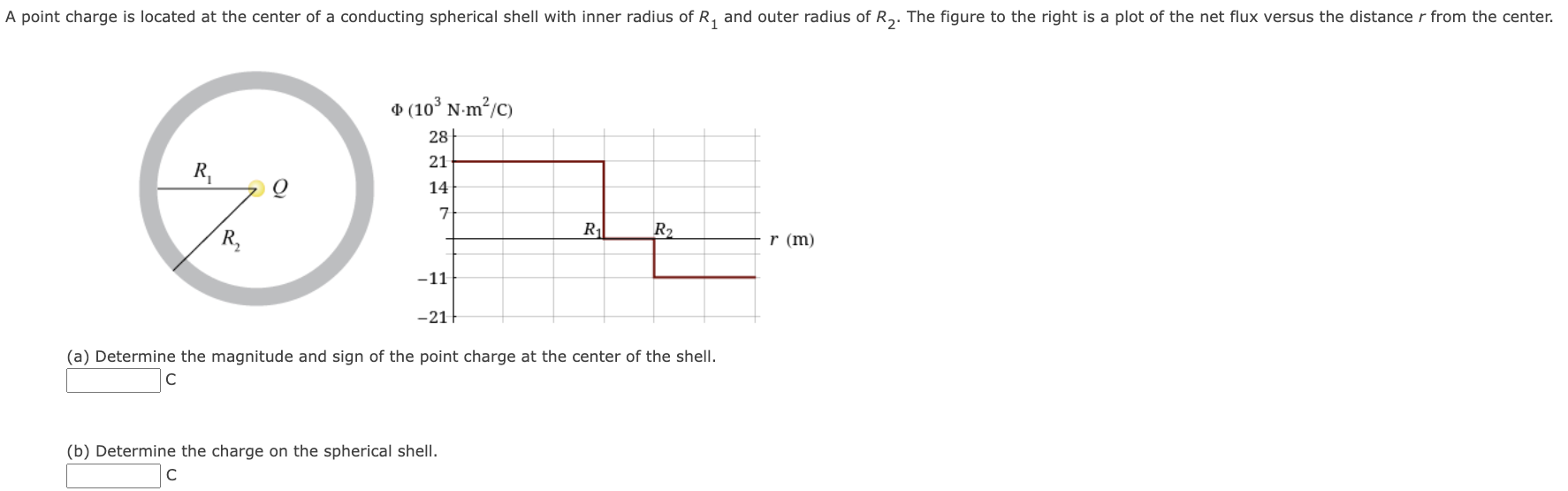

A point charge is located at the center of a conducting spherical shell with inner radius of R1 and outer radius of R2. The figure to the right is a plot of the net flux versus the distance r from the center. (a) Determine the magnitude and sign of the point charge at the center of the shell. C (b) Determine the charge on the spherical shell. C
