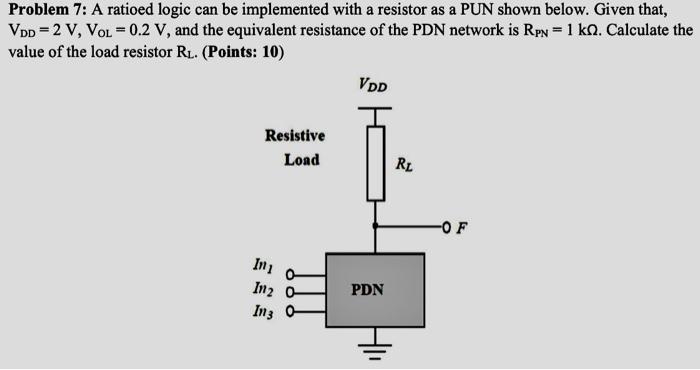

A ratioed logic can be implemented with a resistor as a PUN shown below. Given that, VDD = 2 V, VOL = 0.2 V, and the equivalent resistance of the PDN network is RPN = 1 kΩ. Calculate the value of the load resistor RL.

A ratioed logic can be implemented with a resistor as a PUN shown below. Given that, VDD = 2 V, VOL = 0.2 V, and the equivalent resistance of the PDN network is RPN = 1 kΩ. Calculate the value of the load resistor RL.

Image text
A ratioed logic can be implemented with a resistor as a PUN shown below. Given that, VDD = 2 V, VOL = 0.2 V, and the equivalent resistance of the PDN network is RPN = 1 kΩ. Calculate the value of the load resistor RL.

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)

Similar/Related Questions

The below BJT common-emitter amplifier with β = 100 is fed with a signal source that has a resistance of 5 kΩ. A load resistor of 5 kΩ is connected to the output of the circuit as shown in the figure. The input resistance of the amplifier is Ri = 2 kΩ and its output resistance is Ro = 5 kΩ. Find the bias current (1), and the small signal parameters. Use VT = 25 mV. If the peak value of Vπ (denoted by V^π ) is to be limited to 5 mV, what are the corresponding peak value of Vsig (denoted by V^sig ) and peak value of V0 (denoted by v^0 ) in presence of the load resistor? Instructions: Use the given input and output resistance values and the equations related to these quantities (from the lecture notes) to find the small signal parameters and the bias current. To find the peak value of vsig, you need to draw the small signal circuit. replace v/with vsig in series with a 5 k resistor. From the signal circuit, find out how Vπ is related to Vsig. Calculate the open loop voltage gain, and use it with the given load resistor value and the voltage amplifier model to find out how V0 is related to Vsig in the presence of the load. You can also solve the signal circuit to find the answer. v^sig = 17.5 mV V^0 = 1.5 V v^0 = 0.4 V
Solution
0 0

Write the Boolean function that is realized by the circuit above. Then reformulate it in AOI canonical form. Sketch the CMOS circuit that realizes the canonical function with minimum transistors. VDD = 3V, µnCox = 50 µA/V^2, µpCox = 20 µA/V^2, Vtn = 0.5V, Vtp = -0.5V, Lmin = 0.35 µm is given for the circuit in b. The circuit has an equivalent load capacitor of CL = 50 fF. Find the transistor dimensions which provide tpHL = 1ns and tpLH = 1.25ns for worst-case conditions. Calculate the threshold voltage (VTH) of the CMOS circuit for simultaneous switching using the equivalent inverter concept. The same function is realized using pseudo-NMOS logic. Calculate VOL for worst-case conditions when a minimum-dimension PMOS transistor and NMOS transistors with dimensions found in c are used. Comment on your result. Recalculate the NMOS dimensions so that VOL = 0.2V is obtained for worst-case conditions.
Solution
0 0

A resistively loaded PMOS inverter circuit is shown in figure Q1. The circuit is implemented with the CD4007UBE PMOS. This is essentially the same circuit as the NMOS inverting logic gate you used in Task 3, but with a PMOS transistor instead. The load resistor RD = 6 kΩ, and the supply voltage is VDD = +5 V. The transistor parameters are µpCox = 55 µA/V2, W = 60 µm, L = 10 µm, and Vt,p = -1. For the purposes of this question ignore the channel length modulation effect, i.e. take λ = 0. a) Calculate VOUT as VIN varies from +5 V to 0 V, with 1 V steps, i.e. for 5 V, 4 V, 3 V, 2 V, 1 V and 0 V. b) What is the maximum DC power dissipated by this circuit? Figure Q.1. Resistive load PMOS inverter circuit
