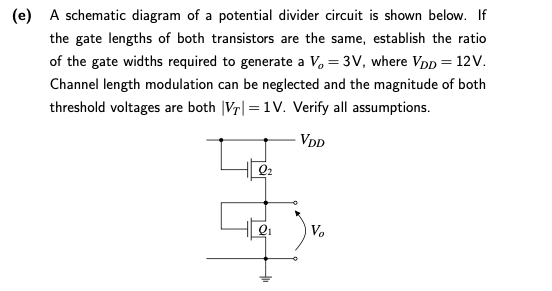

A schematic diagram of a potential divider circuit is shown below. If the gate lengths of both transistors are the same, establish the ratio of the gate widths required to generate a Vo = 3V, where VDD = 12V. Channel length modulation can be neglected and the magnitude of both threshold voltages are both |VT| = 1V. Verify all assumptions.

A schematic diagram of a potential divider circuit is shown below. If the gate lengths of both transistors are the same, establish the ratio of the gate widths required to generate a Vo = 3V, where VDD = 12V. Channel length modulation can be neglected and the magnitude of both threshold voltages are both |VT| = 1V. Verify all assumptions.

Image text
A schematic diagram of a potential divider circuit is shown below. If the gate lengths of both transistors are the same, establish the ratio of the gate widths required to generate a Vo = 3V, where VDD = 12V. Channel length modulation can be neglected and the magnitude of both threshold voltages are both |VT| = 1V. Verify all assumptions.

Detailed Answer

5 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (5)
  • Correct answers (1)
  • Complete solution (1)
  • Step-by-step solution (1)
  • Fully explained (1)

Similar/Related Questions

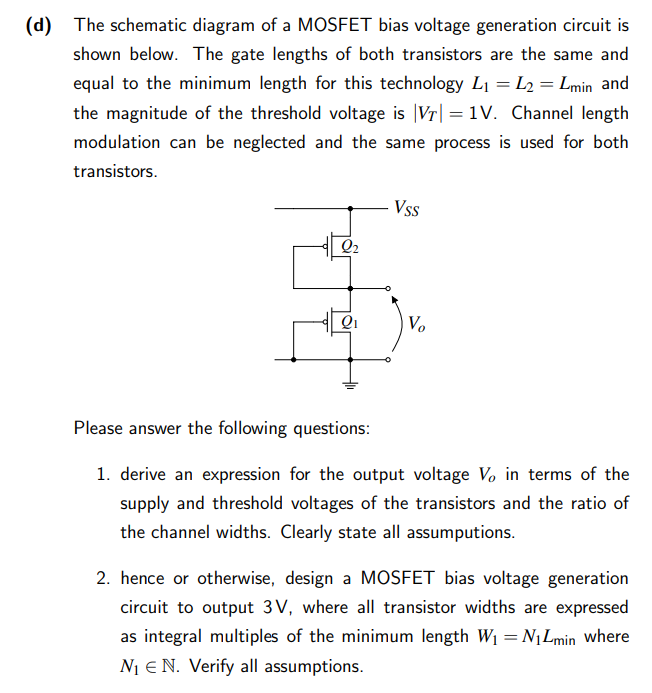

The schematic diagram of a MOSFET bias voltage generation circuit is shown below. The gate lengths of both transistors are the same and equal to the minimum length for this technology L1 = L2 = Lmin and the magnitude of the threshold voltage is |VT| = 1 V. Channel length modulation can be neglected and the same process is used for both transistors. Please answer the following questions: 1. derive an expression for the output voltage Vo in terms of the supply and threshold voltages of the transistors and the ratio of the channel widths. Clearly state all assumptions. 2. hence or otherwise, design a MOSFET bias voltage generation circuit to output 3 V, where all transistor widths are expressed as integral multiples of the minimum length W1 = N1Lmin ? where N1 E N. Verify all assumptions.
Solution
4 0

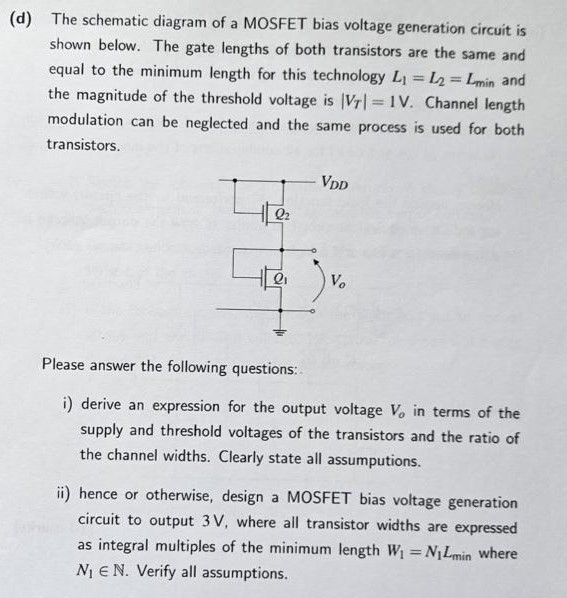

(d) The schematic diagram of a MOSFET bias voltage generation circuit is shown below. The gate lengths of both transistors are the same and equal to the minimum length for this technology L1 = L2 = Lmin and the magnitude of the threshold voltage is |VT| = 1 V. Channel length modulation can be neglected and the same process is used for both transistors. Please answer the following questions: 1. derive an expression for the output voltage Vo in terms of the supply and threshold voltages of the transistors and the ratio of the channel widths. Clearly state all assumptions. 2. hence or otherwise, design a MOSFET bias voltage generation circuit to output 3 V, where all transistor widths are expressed as integral multiples of the minimum length W1 = N1Lmin ? where N1 E N. Verify all assumptions.
Solution
5 0

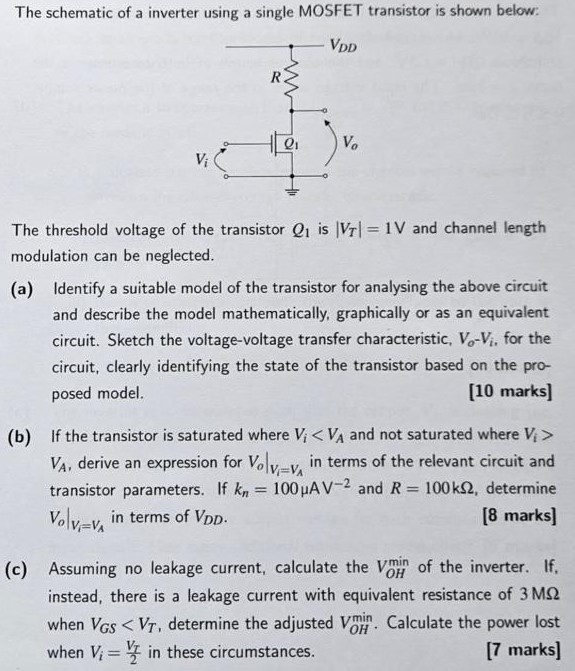

The schematic of a inverter using a single MOSFET transistor is shown below: The threshold voltage of the transistor Q1 is |VT| = 1 V and channel length modulation can be neglected. (a) Identify a suitable model of the transistor for analysing the above circuit and describe the model mathematically, graphically or as an equivalent circuit. Sketch the voltage-voltage transfer characteristic, Vo - Vi, for the circuit, clearly identifying the state of the transistor based on the proposed model. (b) If the transistor is saturated where Vi < VA and not saturated where Vi > VA, derive an expression for Vo|Vi=VA in terms of the relevant circuit and transistor parameters. If kn = 100 μAV-2 and R = 100 kΩ, determine Vo|Vi=VA in terms of VDD. (c) Assuming no leakage current, calculate the VOH min of the inverter. If, instead, there is a leakage current with equivalent resistance of 3 MΩ when VGS < VT, determine the adjusted VOHmin. Calculate the power lost when Vi = VT/2 in these circumstances.
