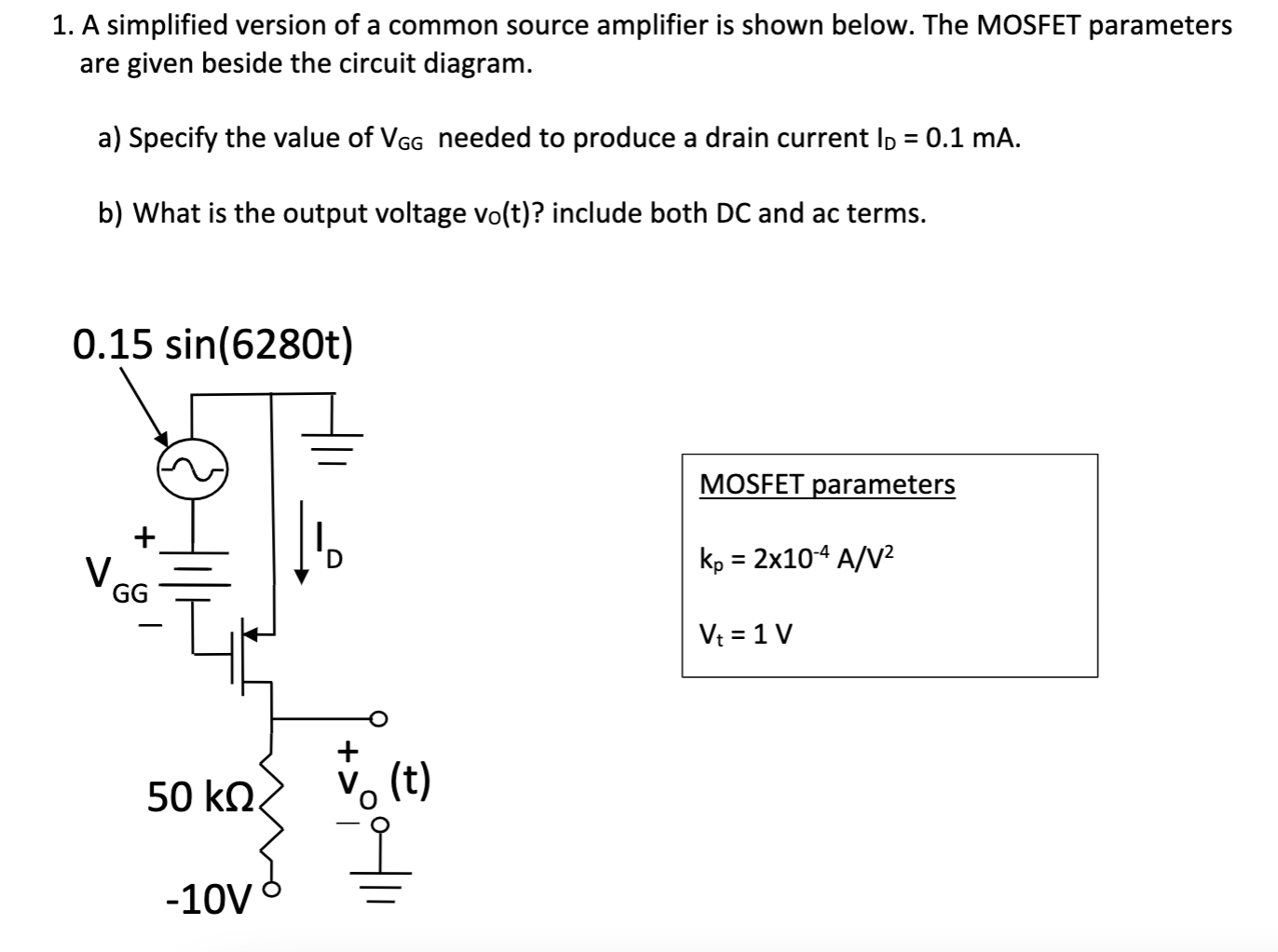

A simplified version of a common source amplifier is shown below. The MOSFET parameters are given beside the circuit diagram. a) Specify the value of VGG needed to produce a drain current ID = 0.1 mA. b) What is the output voltage vo(t)? include both DC and ac terms.
