(a) Using Routh test determine if the system shown in Figure Q6 will be stable when: G1(s) = H1(s) = 2 G2(s) = 1 2s+2 H2(s) = 3 s2+3 (b) Discuss how an appropriate Bode plot can be used to determine if the closed-loop system shown in Figure Q6 stable or not. What transfer function should be used to generate this Bode plot?

(a) Using Routh test determine if the system shown in Figure Q6 will be stable when: G1(s) = H1(s) = 2 G2(s) = 1 2s+2 H2(s) = 3 s2+3 (b) Discuss how an appropriate Bode plot can be used to determine if the closed-loop system shown in Figure Q6 stable or not. What transfer function should be used to generate this Bode plot?

Image text

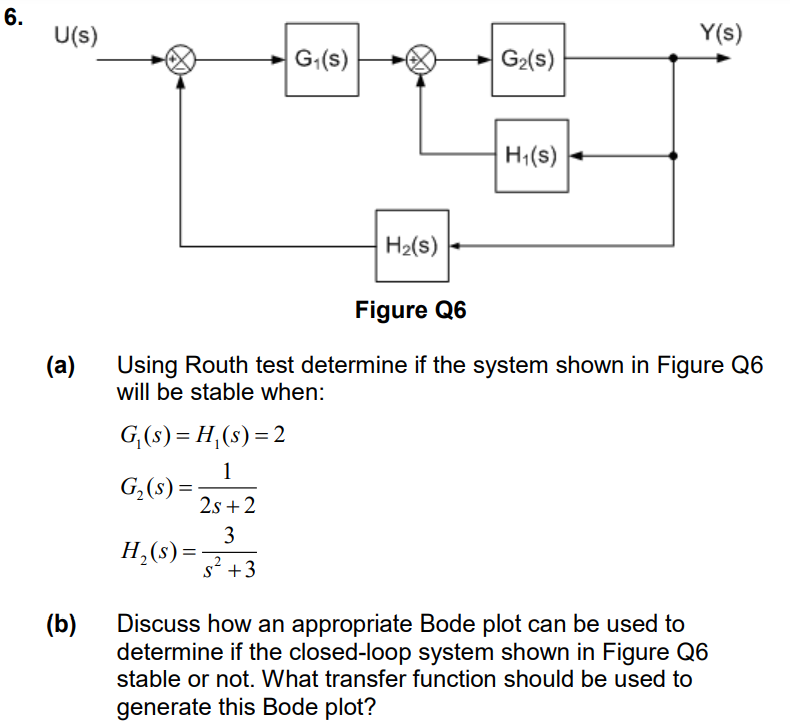

Figure Q6 (a) Using Routh test determine if the system shown in Figure Q6 will be stable when:
G 1 ( s ) = H 1 ( s ) = 2 G 2 ( s ) = 1 2 s + 2 H 2 ( s ) = 3 s 2 + 3
(b) Discuss how an appropriate Bode plot can be used to determine if the closed-loop system shown in Figure Q6 stable or not. What transfer function should be used to generate this Bode plot?
