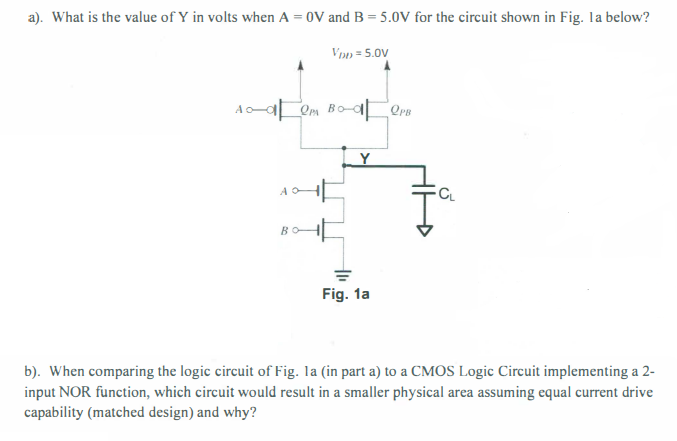

a). What is the value of Y in volts when A = 0 V and B = 5.0 V for the circuit shown in Fig. 1a below? b). When comparing the logic circuit of Fig. 1a (in part a) to a CMOS Logic Circuit implementing a 2-input NOR function, which circuit would result in a smaller physical area assuming equal current drive capability (matched design) and why?

a). What is the value of Y in volts when A = 0 V and B = 5.0 V for the circuit shown in Fig. 1a below? b). When comparing the logic circuit of Fig. 1a (in part a) to a CMOS Logic Circuit implementing a 2-input NOR function, which circuit would result in a smaller physical area assuming equal current drive capability (matched design) and why?

Image text
a). What is the value of Y in volts when A = 0 V and B = 5.0 V for the circuit shown in Fig. 1a below? b). When comparing the logic circuit of Fig. 1a (in part a) to a CMOS Logic Circuit implementing a 2-input NOR function, which circuit would result in a smaller physical area assuming equal current drive capability (matched design) and why?

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)

Similar/Related Questions

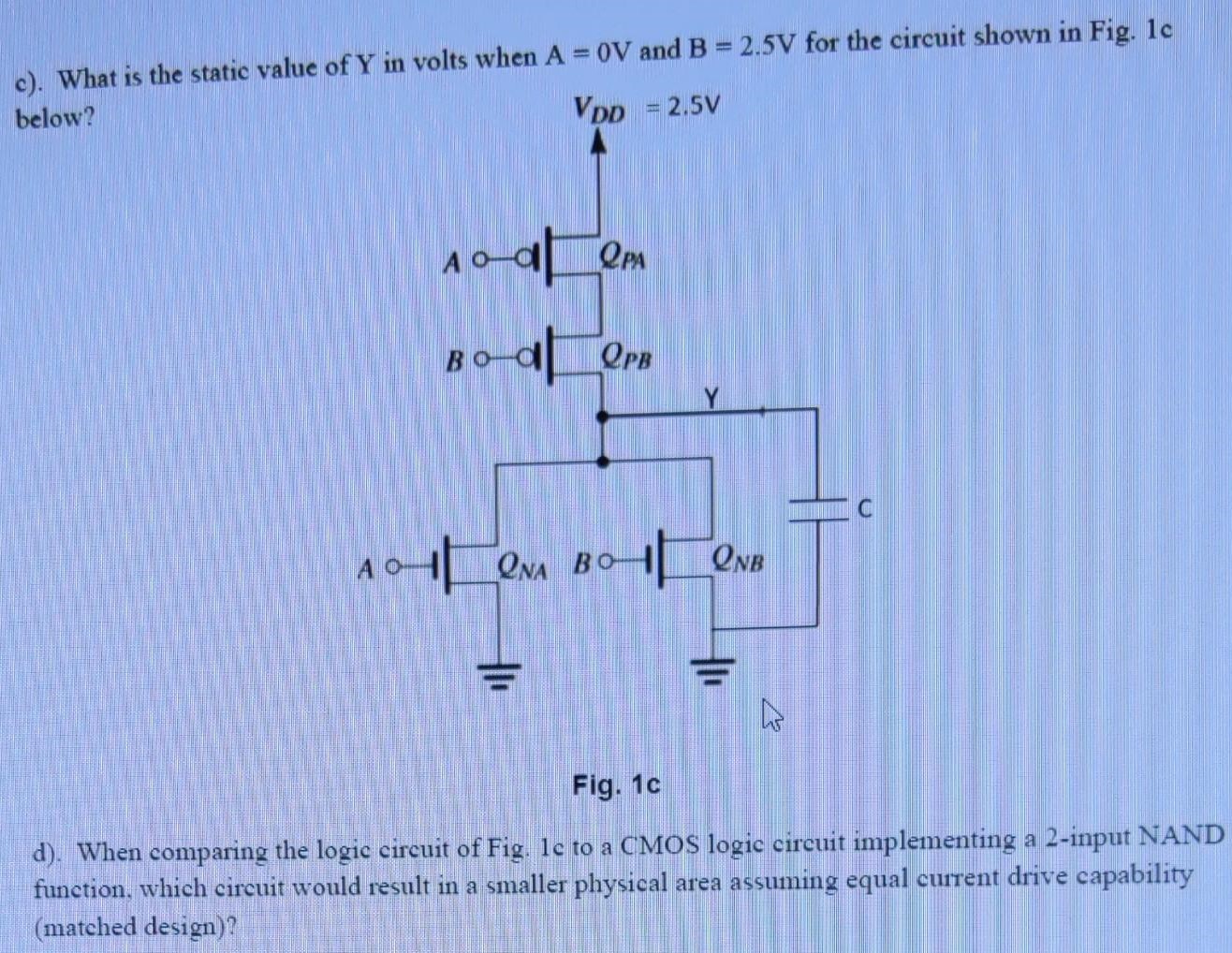

c). What is the static value of Y in volts when A = 0 V and B = 2.5 V for the circuit shown in Fig. 1c below? Fig. 1c d). When comparing the logic circuit of Fig. 1c to a CMOS logic circuit implementing a 2-input NAND function, which circuit would result in a smaller physical area assuming equal current drive capability (matched design)?
