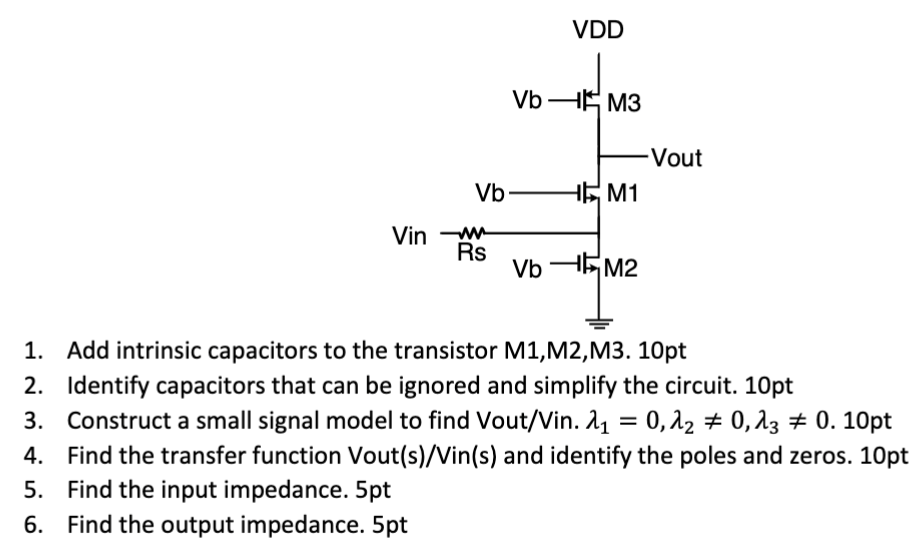

Add intrinsic capacitors to the transistor M1, M2, M3. 10pt Identify capacitors that can be ignored and simplify the circuit. 10 pt Construct a small signal model to find Vout/Vin. λ1 = 0, λ2 ≠ 0, λ3 ≠ 0. 10pt Find the transfer function Vout(s)/Vin(s) and identify the poles and zeros. 10 pt Find the input impedance. 5 pt Find the output impedance. 5 pt

Add intrinsic capacitors to the transistor M1, M2, M3. 10pt Identify capacitors that can be ignored and simplify the circuit. 10 pt Construct a small signal model to find Vout/Vin. λ1 = 0, λ2 ≠ 0, λ3 ≠ 0. 10pt Find the transfer function Vout(s)/Vin(s) and identify the poles and zeros. 10 pt Find the input impedance. 5 pt Find the output impedance. 5 pt

Image text
  1. Add intrinsic capacitors to the transistor M 1 , M 2 , M 3 . 10pt
  2. Identify capacitors that can be ignored and simplify the circuit. 10 p t
  3. Construct a small signal model to find Vout/Vin. λ 1 = 0 , λ 2 ≠ 0 , λ 3 ≠ 0 . 10pt
  4. Find the transfer function Vout(s)/Vin(s) and identify the poles and zeros. 10 p t
  5. Find the input impedance. 5 p t
  6. Find the output impedance. 5 p t
  1. Add intrinsic capacitors to the transistor M 1 , M 2 , M 3.10 p t
  2. Identify capacitors that can be ignored and simplify the circuit. 10pt
  3. Construct a small signal model to find Vout/Vin. λ 1 = 0 , λ 2 ≠ 0 , λ 3 ≠ 0.10 p t
  4. Find the transfer function Vout(s)/Vin(s) and identify the poles and zeros. 10pt
  5. Find the input impedance. 5 p t
  6. Find the output impedance. 5 p t

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

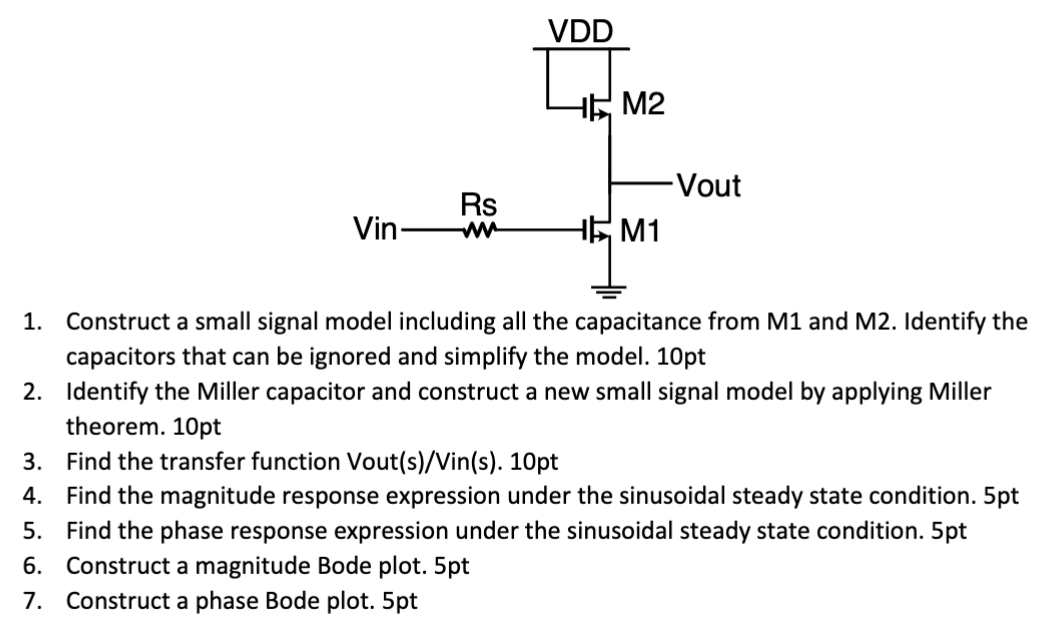

Construct a small signal model including all the capacitance from M1 and M2. Identify the capacitors that can be ignored and simplify the model. 10pt Identify the Miller capacitor and construct a new small signal model by applying Miller theorem. 10pt Find the transfer function Vout(s)/Vin(s). 10pt Find the magnitude response expression under the sinusoidal steady state condition. 5pt Find the phase response expression under the sinusoidal steady state condition. 5pt Construct a magnitude Bode plot. 5pt Construct a phase Bode plot. 5pt
Solution
0 0

Small signal gain and impedance a) Show the small-signal model to find Vout/Vin. M1, M2, M3 has an infinite output impedance (rds = infinite). Vb is a bias voltage. Assume all saturated. (5pt) b) Find the small signal gain defined by Vout/vin. (10pt) c) Find the small signal output impedance (5pt). d) Find the small signal input impedance (5pt).
Solution
0 0

In the circuit shown below the n-channel enhancement-type mosfet has a threshold voltage Vt = 1V and unCox W / 2L = 1mA /V^2. The channel-length modulation effect and the body effect can be ignored. Determine: a. (10 pts) the value of RD that will produce a dc drain-to-source voltage VDS = VOV + 2V. b. (5 pts) if RD = 25kohm, Rs = 0, and assuming saturation-region operation, the voltage gain Av = vOUT/vIN. c. (5 pts) if RD = 25kohm, Rs = 1kohm, and assuming saturation-region operation, the voltage gain Av = vOUT/vIN.
