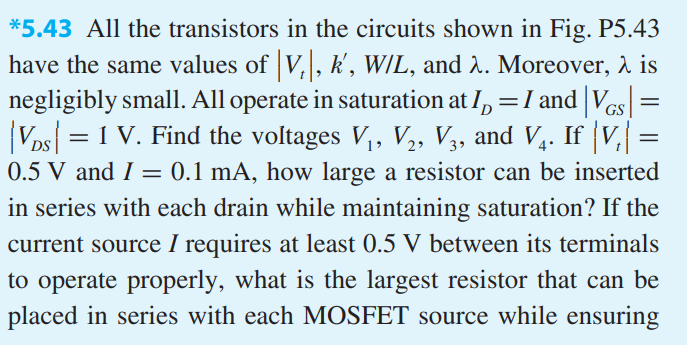

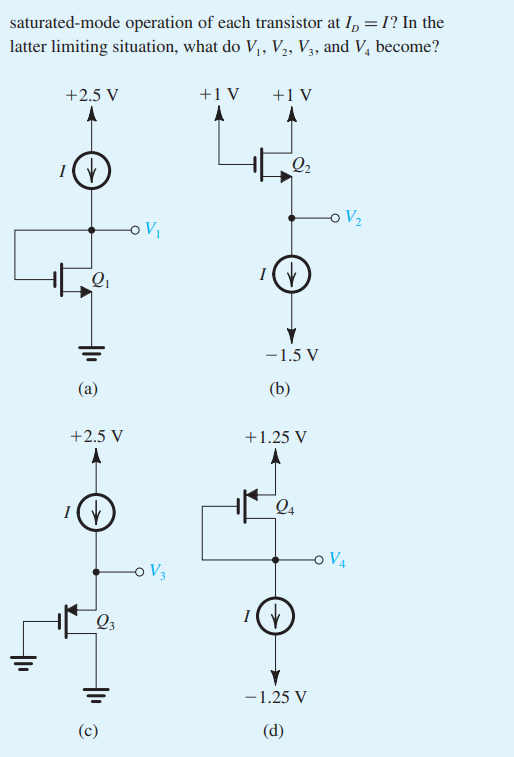

All the transistors in the circuits shown in Fig. P5.43 have the same values of |Vt|, k

All the transistors in the circuits shown in Fig. P5.43 have the same values of |Vt|, kAll the transistors in the circuits shown in Fig. P5.43 have the same values of |Vt|, k

Image text
All the transistors in the circuits shown in Fig. P5.43 have the same values of |Vt|, k
