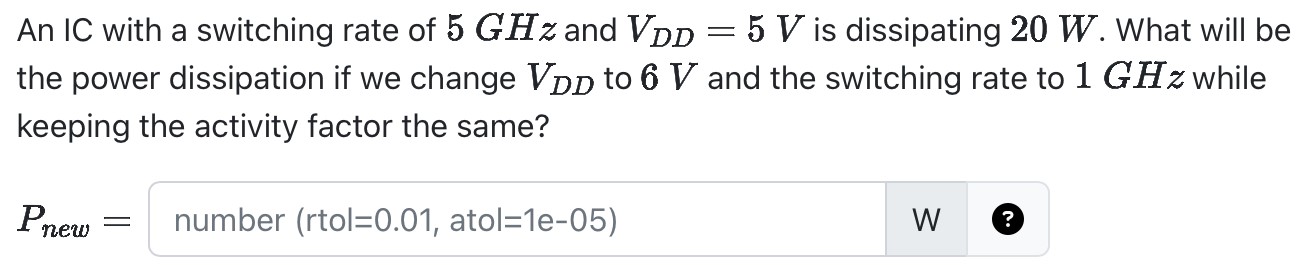

An IC with a switching rate of 5 GHz and VDD = 5 V is dissipating 20 W. What will be the power dissipation if we change VDD to 6 V and the switching rate to 1 GHz while keeping the activity factor the same? Pnew = number (rtol = 0.01, atol = 1e-05) w

An IC with a switching rate of 5 GHz and VDD = 5 V is dissipating 20 W. What will be the power dissipation if we change VDD to 6 V and the switching rate to 1 GHz while keeping the activity factor the same? Pnew = number (rtol = 0.01, atol = 1e-05) w

Image text
An IC with a switching rate of 5 G H z and V D D = 5 V is dissipating 20 W . What will be the power dissipation if we change V D D to 6 V and the switching rate to 1 GHz while keeping the activity factor the same?
P new = number (rtol=0.01, atol=1e-05)
w

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

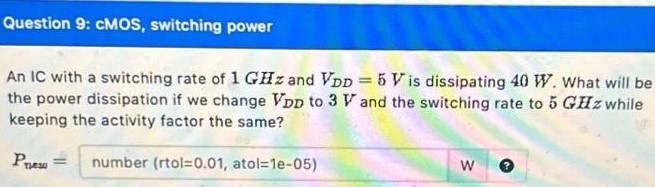

Question 9: cMOS, switching power An IC with a switching rate of 1 GHz and VDD = 5 V is dissipating 40 W. What will be the power dissipation if we change VDD to 3V and the switching rate to 5 GHz while keeping the activity factor the same? Pnew = number (rtol = 0.01, atol = 1e-05)
