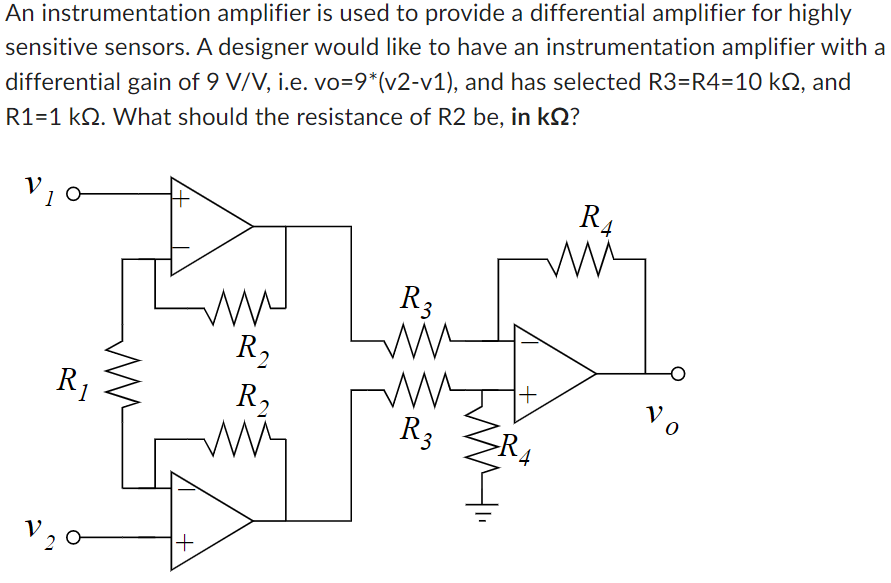

An instrumentation amplifier is used to provide a differential amplifier for highly sensitive sensors. A designer would like to have an instrumentation amplifier with a differential gain of 9 V/V, i. e. vo = 9∗(v2−v1), and has selected R3 = R4 = 10 kΩ, and R1 = 1 kΩ. What should the resistance of R2 be, in kΩ?

An instrumentation amplifier is used to provide a differential amplifier for highly sensitive sensors. A designer would like to have an instrumentation amplifier with a differential gain of 9 V/V, i. e. vo = 9∗(v2−v1), and has selected R3 = R4 = 10 kΩ, and R1 = 1 kΩ. What should the resistance of R2 be, in kΩ?

Image text
An instrumentation amplifier is used to provide a differential amplifier for highly sensitive sensors. A designer would like to have an instrumentation amplifier with a differential gain of 9 V / V , i.e. vo = 9 ∗ ( v 2 − v 1 ) , and has selected R 3 = R 4 = 10 k Ω , and R 1 = 1 k Ω . What should the resistance of R 2 be, in k Ω ?

Detailed Answer
