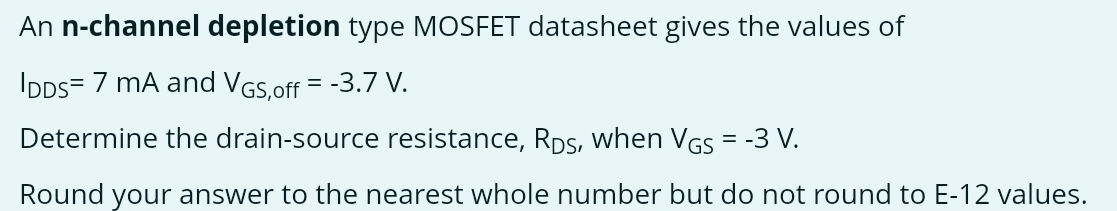

An n-channel depletion type MOSFET datasheet gives the values of IDDS = 7 mA and VGS, off = −3.7 V. Determine the drain-source resistance, RDS, when VGS = −3 V. Round your answer to the nearest whole number but do not round to E−12 values.

An n-channel depletion type MOSFET datasheet gives the values of IDDS = 7 mA and VGS, off = −3.7 V. Determine the drain-source resistance, RDS, when VGS = −3 V. Round your answer to the nearest whole number but do not round to E−12 values.

Image text
An n-channel depletion type MOSFET datasheet gives the values of I D D S = 7 m A and V G S , off = − 3.7 V .
Determine the drain-source resistance, R D S , when V G S = − 3 V . Round your answer to the nearest whole number but do not round to E − 12 values.
