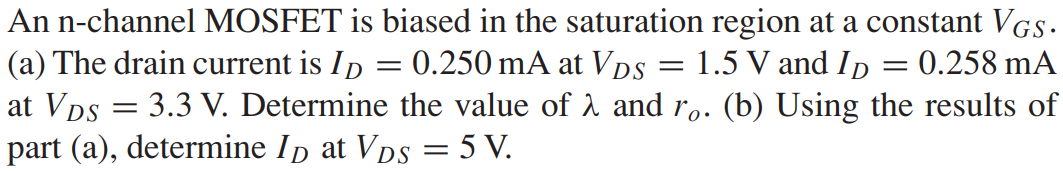

An n-channel MOSFET is biased in the saturation region at a constant VGS. (a) The drain current is ID = 0.250 mA at VDS = 1.5 V and ID = 0.258 mA at VDS = 3.3 V. Determine the value of λ and ro. (b) Using the results of part (a), determine ID at VDS = 5 V.

An n-channel MOSFET is biased in the saturation region at a constant VGS. (a) The drain current is ID = 0.250 mA at VDS = 1.5 V and ID = 0.258 mA at VDS = 3.3 V. Determine the value of λ and ro. (b) Using the results of part (a), determine ID at VDS = 5 V.

Image text
An n-channel MOSFET is biased in the saturation region at a constant VGS. (a) The drain current is ID = 0.250 mA at VDS = 1.5 V and ID = 0.258 mA at VDS = 3.3 V. Determine the value of λ and ro. (b) Using the results of part (a), determine ID at VDS = 5 V.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

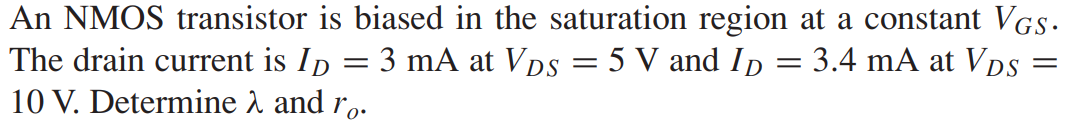

An NMOS transistor is biased in the saturation region at a constant VGS. The drain current is ID = 3 mA at VDS = 5 V and ID = 3.4 mA at VDS = 10 V. Determine λ and ro.
