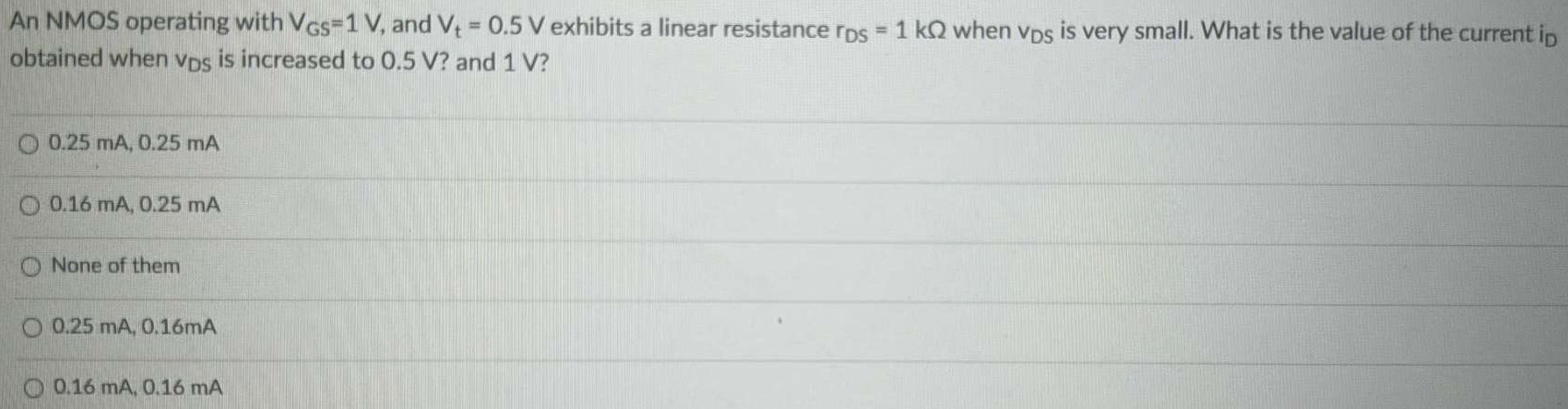

An NMOS operating with VGS = 1 V, and Vt = 0.5 V exhibits a linear resistance rDS = 1 kΩ when VDS is very small. What is the value of the current iD obtained when VDS is increased to 0.5 V ? and 1 V ? 0.25 mA, 0.25 mA 0.16 mA, 0.25 mA None of them 0.25 mA, 0.16 mA 0.16 mA, 0.16 mA

An NMOS operating with VGS = 1 V, and Vt = 0.5 V exhibits a linear resistance rDS = 1 kΩ when VDS is very small. What is the value of the current iD obtained when VDS is increased to 0.5 V ? and 1 V ? 0.25 mA, 0.25 mA 0.16 mA, 0.25 mA None of them 0.25 mA, 0.16 mA 0.16 mA, 0.16 mA

Image text
An NMOS operating with V G S = 1 V , and V t = 0.5 V exhibits a linear resistance r D S = 1 k Ω when V D S is very small. What is the value of the current i D obtained when V D S is increased to 0.5 V ? and 1 V ? 0.25 m A , 0.25 m A 0.16 m A , 0.25 m A None of them 0.25 m A , 0.16 m A 0.16 m A , 0.16 m A

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

It is required to bias the MOSFET amplifier shown in Fig. 1 below at point Q for which VOV,Q = 0.2 V and VDS,Q = 1 V. It is required to bias the MOS amplifier of Fig. 7.3 at point Q for which VOV = 0.2 V and VDS = 1 V. Find the required value of RD when VDD = 5 V, Vt = 0.5 V, and kn = 10 mA/V2. Also specify the coordinates of the VTC end point B. What is the small signal voltage gain of this amplifier? Assuming linear operation, what is the maximum allowable negative signal swing at the output? What is the corresponding positive peak input signal?
Solution
0 0

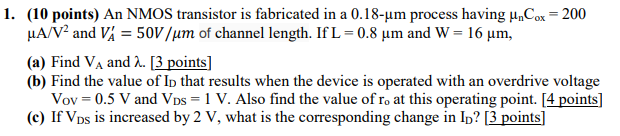

An NMOS transistor is fabricated in a 0.18-um process having unCox = 200 uA/V^2 and VA' = 50V /um of channel length. If L = 0.8 um and W = 16 um, (a) Find VA and lambda. [3 points] (b) Find the value of ID that results when the device is operated with an overdrive voltage Vov = 0.5 V and VDS = 1 V. Also find the value of ro at this operating point. [4 points] (c) If VDS is increased by 2 V, what is the corresponding change in ID? [3 points]
