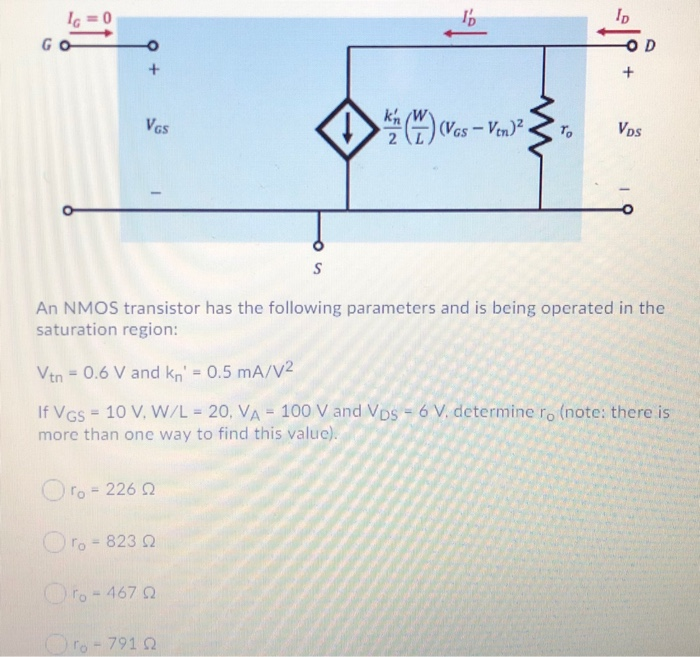

An NMOS transistor has the following parameters and is being operated in the saturation region: Vtn = 0.6 V and kn' = 0.5 mA/V2 If VGS = 10 V, W/L = 20, VA = 100 V and VDS = 6 V. determine ro. (note: there is more than one way to find this value).
