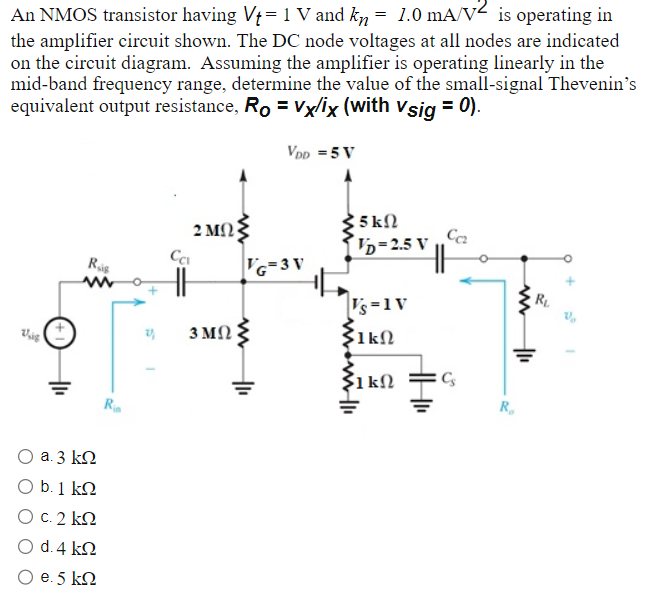

An NMOS transistor having Vt = 1 V and kn = 1.0 mA/V2 is operating in the amplifier circuit shown. The DC node voltages at all nodes are indicated on the circuit diagram. Assuming the amplifier is operating linearly in the mid-band frequency range, determine the value of the small-signal Thevenin's equivalent output resistance, RO = vX/iX (with vsig = 0). a. 3 kΩ b. 1 kΩ c. 2 kΩ d. 4 kΩ e. 5 kΩ

An NMOS transistor having Vt = 1 V and kn = 1.0 mA/V2 is operating in the amplifier circuit shown. The DC node voltages at all nodes are indicated on the circuit diagram. Assuming the amplifier is operating linearly in the mid-band frequency range, determine the value of the small-signal Thevenin's equivalent output resistance, RO = vX/iX (with vsig = 0). a. 3 kΩ b. 1 kΩ c. 2 kΩ d. 4 kΩ e. 5 kΩ

Image text
An NMOS transistor having V t = 1 V and k n = 1.0 m A / V 2 is operating in the amplifier circuit shown. The DC node voltages at all nodes are indicated on the circuit diagram. Assuming the amplifier is operating linearly in the mid-band frequency range, determine the value of the small-signal Thevenin's equivalent output resistance, R O = v X / i X ( with v sig = 0 ) .
a. 3 k Ω
b. 1 k Ω
c. 2 k Ω
d. 4 k Ω
e. 5 k Ω

Detailed Answer

2 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (2)
  • Correct answers (2)
  • Complete solution (2)
  • Step-by-step solution (2)
  • Fully explained (2)

Similar/Related Questions

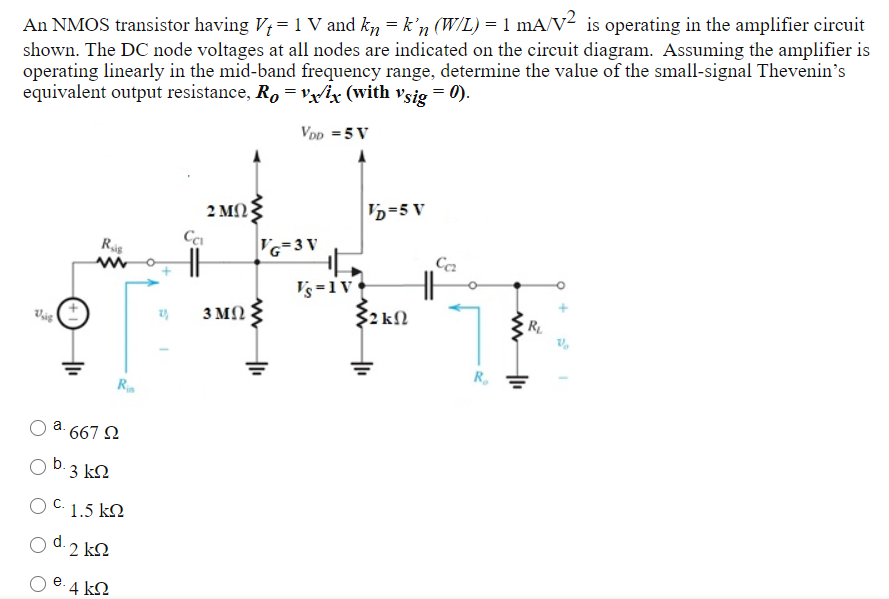

An NMOS transistor having Vt = 1 V and kn = kn'(W/L) = 1 mA/V2 is operating in the amplifier circuit shown. The DC node voltages at all nodes are indicated on the circuit diagram. Assuming the amplifier is operating linearly in the mid-band frequency range, determine the value of the small-signal Thevenin's equivalent output resistance, Ro = vx/ix (with vsig = 0). a. 667 Ω b. 3 kΩ C. 1.5 kΩ d. 2 kΩ e. 4 kΩ

Solution
2 0

In this amplifier circuit, the high and low DC voltage sources are: VDD = 5 V and VSS = −5 V respectively. Consider that all three external capacitors have high values. The PMOS transistor has a threshold voltage equal to Vt = −1 V and kp = kp′(W/L) = 0.4 mA/V2, and the NMOS transistor has a threshold voltage Vt = 1 V and a kn = kn′(W/L) = 2 mA/V2. It was shown in HW#7 that the DC drain voltage of the PMOS transistor is −0.2 V and the DC source of the NMOS transistor is −2 V. a) Perform the small signal analysis of this circuit and determine the voltage gain: AV = Vo/Vi b) Determine the input and output resistance of this amplifier Rin and Rout . c) Discuss what is the purpose of the part of the circuit between CC2 and CC3 which includes the NMOS transistor in this amplifier design. d) Determine the parameters of a simple voltage amplifier model (discussed in chapter 1) which will represent this amplifier. Note that the parameters of the simple voltage amplifier excludes any series resistance of the external source ( Vi ) (in this case it is zero anyway) and the load resistance (in this case RL = 2 kΩ ). e) Using the simple model from part (c) determine the voltage gain AV = Vo/Vi and see if it agrees with the answer of part (a). VDD
Solution
0 0

QUESTION 3 This question examines large signal behaviour of transistor circuits (a) Assume that the MOSFET in Figure 3.1 is operating in saturation and is characterised by a threshold voltage, VT = 1 V. Assume that the parameter, K = 1 mA/V2 where the drain-source current in the MOSFET in saturation is given by equation (3.1). iDS(sat) = K2(vGS−VT)2 Show that the gate-source voltage, vGS, for the circuit shown in Figure 3.1 may be written in terms of the input voltage, vIN, and the output voltage vO, by equation ( 3.2 ): vGS = vINR2 R1+R2 + vOR1 R1+R2 Figure 3.1 (b) For the circuit shown in Figure 3.1, calculate the minimum possible value of output voltage, vO when vIN = 5 V assuming that the MOSFET is maintained in saturation. Assume Rl = R2 = 10 kΩ, and RL = 1 kΩ (c) For the circuit shown in Figure 3.1, determine the value of the constant voltage source, VS, if vO = 4 V when vIN = 5 V and all other circuit parameters are as descirbed in Q3, part (b).
