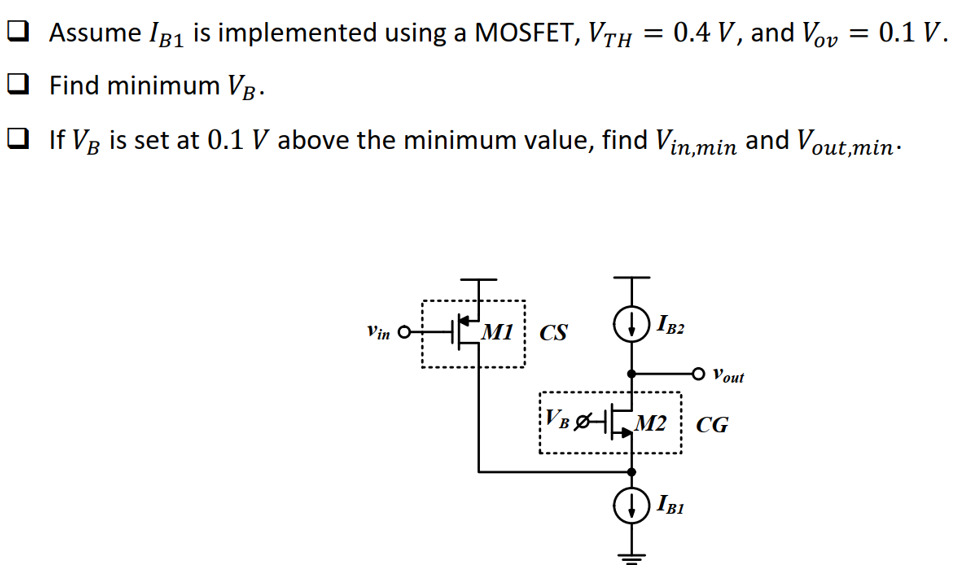

Assume IB1 is implemented using a MOSFET, VTH = 0.4 V, and Vov = 0.1 V. Find minimum VB. If VB is set at 0.1 V above the minimum value, find Vin,min and Vout,min.
