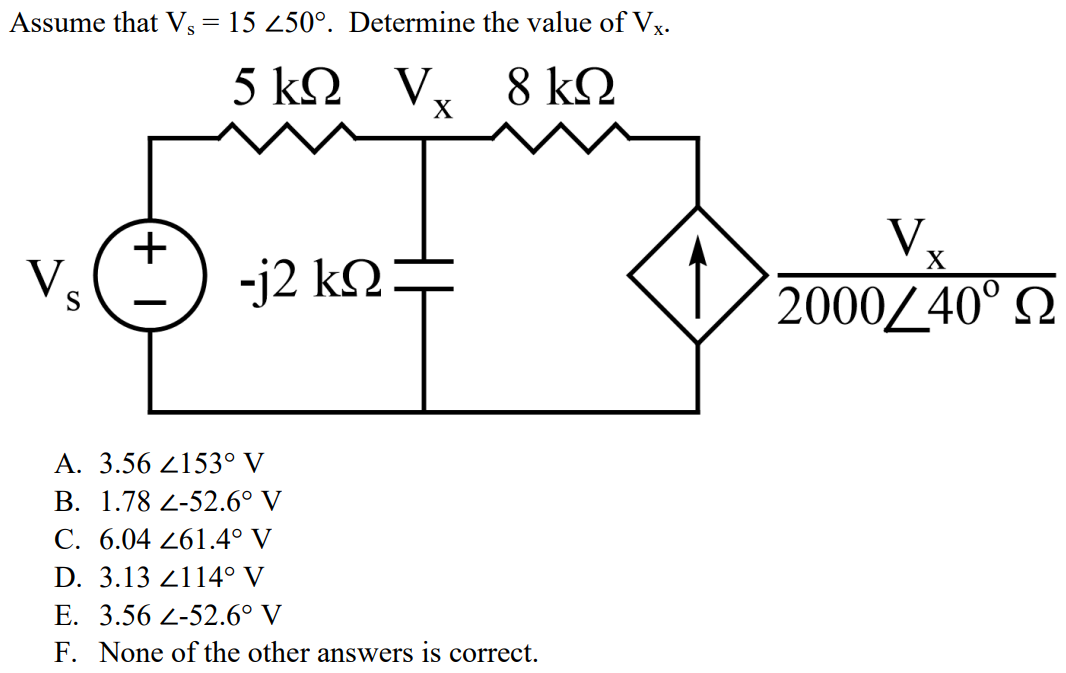

Assume that Vs = 15 ∠50°. Determine the value of Vx. A. 3.56 ∠153° V B. 1.78 ∠-52.6° V C. 6.04 ∠61.4° V D. 3.13 ∠114° V E. 3.56 ∠-52.6° V F. None of the other answers is correct.

Assume that Vs = 15 ∠50°. Determine the value of Vx. A. 3.56 ∠153° V B. 1.78 ∠-52.6° V C. 6.04 ∠61.4° V D. 3.13 ∠114° V E. 3.56 ∠-52.6° V F. None of the other answers is correct.

Image text
Assume that Vs = 15 ∠50°. Determine the value of Vx. A. 3.56 ∠153° V B. 1.78 ∠-52.6° V C. 6.04 ∠61.4° V D. 3.13 ∠114° V E. 3.56 ∠-52.6° V F. None of the other answers is correct.

Detailed Answer
