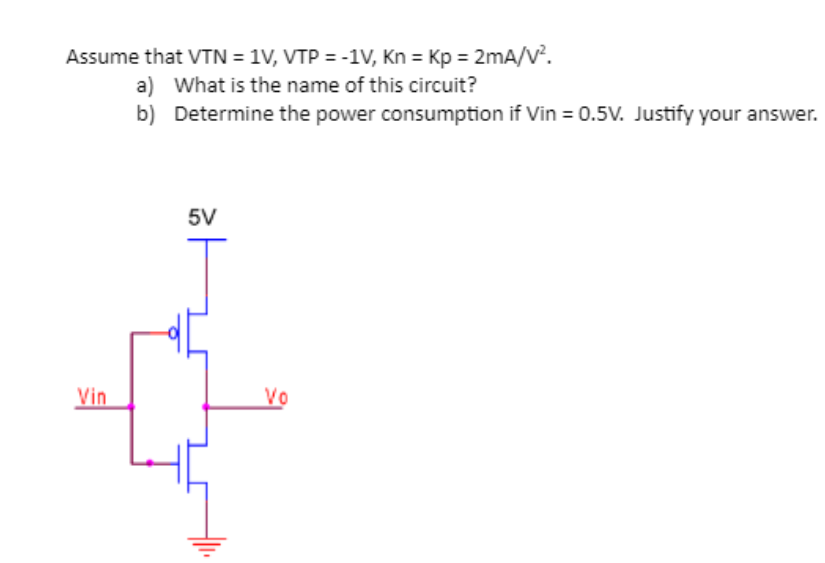

Assume that VTN = 1V, VTP = -1V, Kn = Kp = 2mA/V^2. a) What is the name of this circuit? b) Determine the power consumption if Vin = 0.5V. Justify your answer.

Assume that VTN = 1V, VTP = -1V, Kn = Kp = 2mA/V^2. a) What is the name of this circuit? b) Determine the power consumption if Vin = 0.5V. Justify your answer.

Image text
Assume that VTN = 1V, VTP = -1V, Kn = Kp = 2mA/V^2. a) What is the name of this circuit? b) Determine the power consumption if Vin = 0.5V. Justify your answer.

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)

Similar/Related Questions

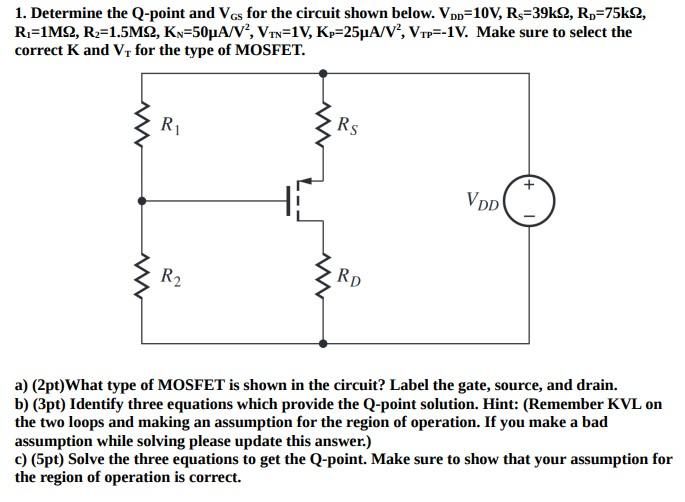

Determine the Q-point and VGS for the circuit shown below. VDD = 10 V,RS = 39 kohm, RD = 75kohm, R1 = 1 Mohm, R2 = 1.5 Mohm, KN = 50 uA/V2, VTN = 1V, KP = 25 uA/V2, VTP = -1V. Make sure to select the correct K and VT for the type of MOSFET. a) (2pt) What type of MOSFET is shown in the circuit? Label the gate, source, and drain. b) (3pt) Identify three equations which provide the Q-point solution. Hint: (Remember KVL on the two loops and making an assumption for the region of operation. If you make a bad assumption while solving please update this answer.) c) (5pt) Solve the three equations to get the Q-point. Make sure to show that your assumption for the region of operation is correct.
