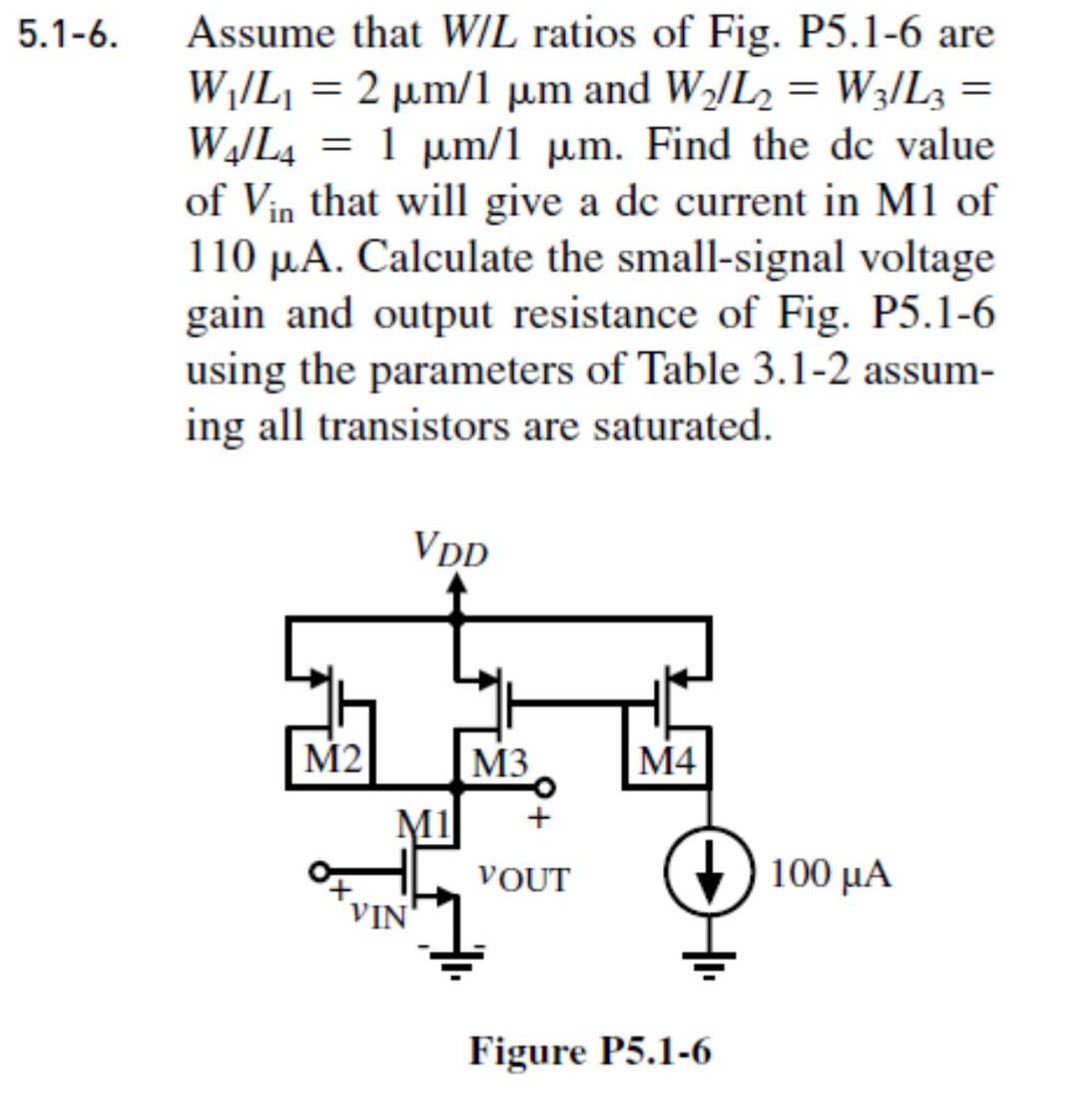

Assume that W/L ratios of Fig. P5.1-6 are W1/L1 = 2μm/1μm and W2/L2 = W3/L3 = W4/L4 = 1μm/1μm. Find the dc value of Vin that will give a dc current in M1 of 110 μA. Calculate the small-signal voltage gain and output resistance of Fig. P5.1-6 using the parameters of Table 3.1-2 assuming all transistors are saturated.
