Assuming that the NMOS is in saturation region, analysis the circuit in figure 2 using Both DC and AC Analysis .In this analyses use the following data = 0.005 V-1, k = 0.4 mA/V2 Vt = 2.0 V. Make so you justify your answer with following two saturation conditions VGS > VTH and VDS > VGS - VTH

Assuming that the NMOS is in saturation region, analysis the circuit in figure 2 using Both  DC and Ac Analysis .In this analyses use the following data λ = 0.005 V-1, k =0 .4 mA/V2 Vt = 2.0 V. Make so you justify your answer with following two saturation conditions   VGS > VTH and VDS > VGS - VTH

Assuming that the NMOS is in saturation region, analysis the circuit in figure 2 using Both DC and AC Analysis .In this analyses use the following data = 0.005 V-1, k = 0.4 mA/V2 Vt = 2.0 V. Make so you justify your answer with following two saturation conditions VGS > VTH and VDS > VGS - VTH

Image text
Assuming that the NMOS is in saturation region, analysis the circuit in figure 2 using Both DC and AC Analysis .In this analyses use the following data = 0.005 V-1, k = 0.4 mA/V2 Vt = 2.0 V. Make so you justify your answer with following two saturation conditions VGS > VTH and VDS > VGS - VTH

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)
  • Correct answers (1)
  • Complete solution (1)
  • Step-by-step solution (1)
  • Fully explained (1)

Similar/Related Questions

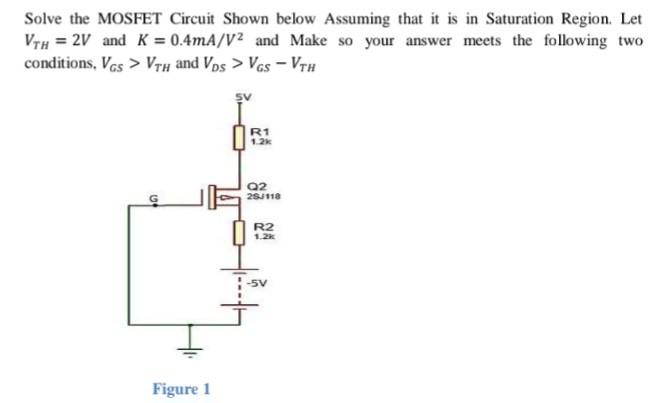

Solve the MOSFET Circuit Shown below Assuming that it is in Saturation Region. Let VTH = 2 V and K = 0.4 mA/V2 and Make so your answer meets the following two conditions, VGS > VTH and VDS > VGS - VTH
