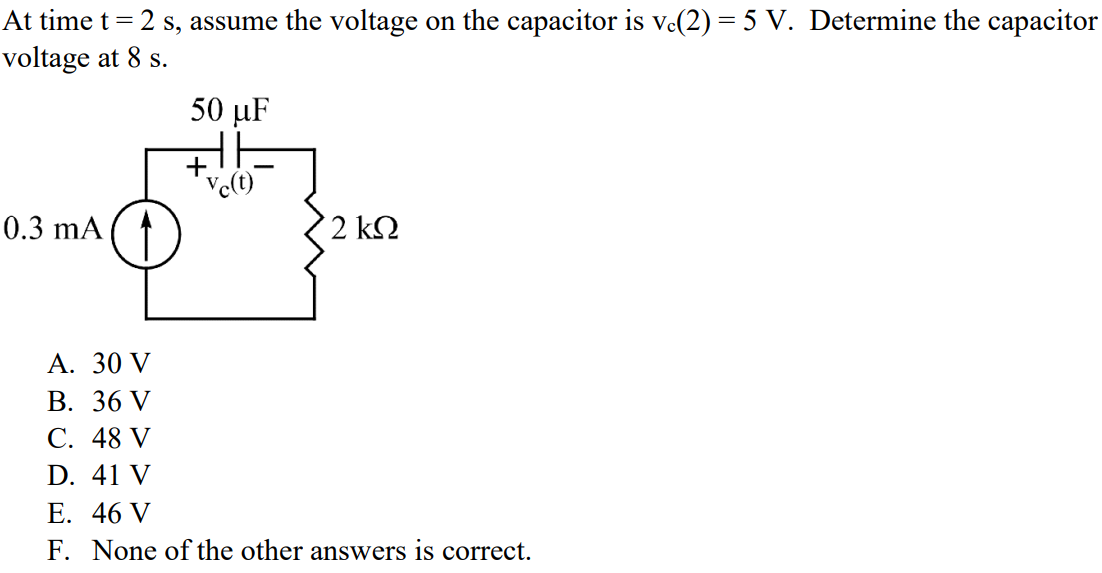

At time t = 2 s, assume the voltage on the capacitor is vc(2) = 5 V. Determine the capacitor voltage at 8 s. A. 30 V B. 36 V C. 48 V D. 41 V E. 46 V F. None of the other answers is correct.
