(b) Plot the VTC of the CMOS inverter using SPICE. (c) Determine the VTC of the inverter for lambda = 0.05 V-1 and 0.1 V-1. (d) Discuss how the noise margins are influenced by non-zero lambda, value. Note that transistors with very short channel lengths (manufactured with sub-micron design rules) tend to have larger

Consider a CMOS inverter, with the following device parameters: nMOS VT0,n = 0.6 V unCox = 60 uA/V2 pMOS VT0,p = -0.8 V upCox = 20 uA/V2 Also: VDD = 3 V (a) Determine the (W/L) ratios of the nMOS and the PMOS transistor such that the switching threshold is Vth = 1.5 V. (b) Plot the VTC of the CMOS inverter using SPICE. (c) Determine the VTC of the inverter for lambda = 0.05 V-1 and 0.1 V-1. (d) Discuss how the noise margins are influenced by non-zero lambda, value. Note that transistors with very short channel lengths (manufactured with sub-micron design rules) tend to have larger a values than long-channel transistors.

Image text
(b) Plot the VTC of the CMOS inverter using SPICE. (c) Determine the VTC of the inverter for lambda = 0.05 V-1 and 0.1 V-1. (d) Discuss how the noise margins are influenced by non-zero lambda, value. Note that transistors with very short channel lengths (manufactured with sub-micron design rules) tend to have larger

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)

Similar/Related Questions

Consider a CMOS inverter, with the following device parameters: nMOS VT0,n = 0.6 V unCox = 60 uA/V2 pMOS VT0,p = -0.8 V upCox = 20 uA/V2 Also: VDD = 3 V (a) Determine the (W/L) ratios of the nMOS and the PMOS transistor such that the switching threshold is Vth = 1.5 V. (b) Plot the VTC of the CMOS inverter using SPICE. (c) Determine the VTC of the inverter for lambda = 0.05 V-1 and 0.1 V-1. (d) Discuss how the noise margins are influenced by non-zero lambda, value. Note that transistors with very short channel lengths (manufactured with sub-micron design rules) tend to have larger

Solution
1 0

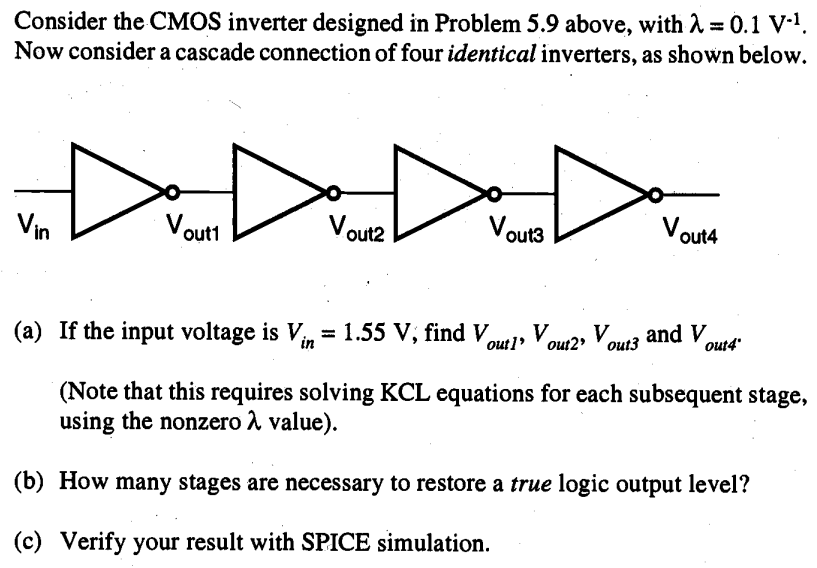

Consider the CMOS inverter designed in Problem 5.9 above, with λ = 0.1 V-1. Now consider a cascade connection of four identical inverters, as shown below. (a) If the input voltage is Vin = 1.55 V, find Vout1, vout2, vout3 and vout4 (Note that this requires solving KCL equations for each subsequent stage, using the nonzero a value). (b) How many stages are necessary to restore a true logic output level? (c) Verify your result with SPICE simulation.
