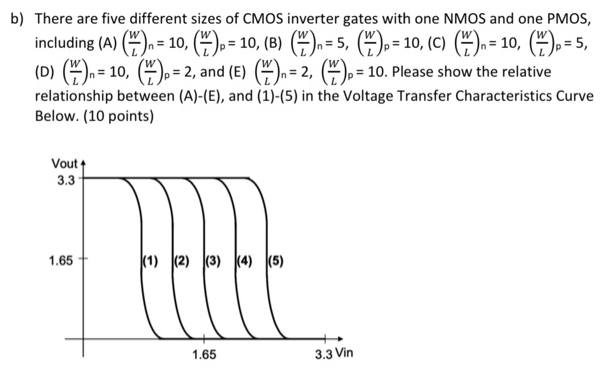

b) There are five different sizes of CMOS inverter gates with one NMOS and one PMOS, including (A) (WL)n = 10, (WL)p = 10, (B) (WL)n = 5, (WL)p = 10, (C) (WL)n = 10, (WL)p = 5, (D) (WL)n = 10, (WL)p = 2, and (E) (WL)n = 2, (WL)p = 10. Please show the relative relationship between (A)-(E), and (1)-(5) in the Voltage Transfer Characteristics Curve Below. (10 points)

b) There are five different sizes of CMOS inverter gates with one NMOS and one PMOS, including (A) (WL)n = 10, (WL)p = 10, (B) (WL)n = 5, (WL)p = 10, (C) (WL)n = 10, (WL)p = 5, (D) (WL)n = 10, (WL)p = 2, and (E) (WL)n = 2, (WL)p = 10. Please show the relative relationship between (A)-(E), and (1)-(5) in the Voltage Transfer Characteristics Curve Below. (10 points)

Image text
b) There are five different sizes of CMOS inverter gates with one NMOS and one PMOS, including (A) ( W L ) n = 10 , ( W L ) p = 10 , (B) ( W L ) n = 5 , ( W L ) p = 10 , (C) ( W L ) n = 10 , ( W L ) p = 5 , (D) ( W L ) n = 10 , ( W L ) p = 2 , and (E) ( W L ) n = 2 , ( W L ) p = 10 . Please show the relative relationship between (A)-(E), and (1)-(5) in the Voltage Transfer Characteristics Curve Below. (10 points)

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

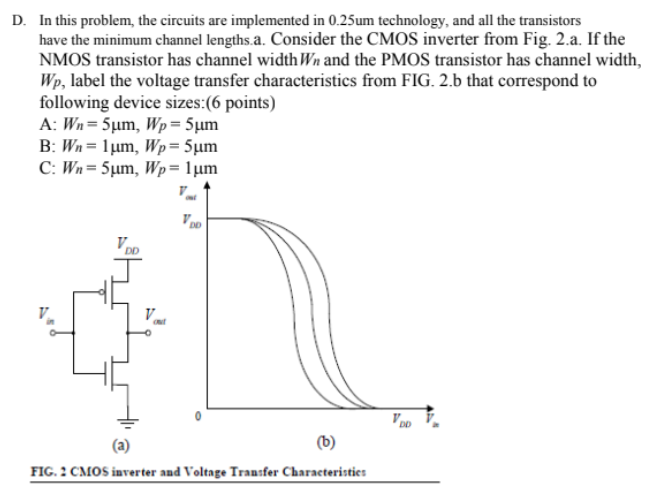

D. In this problem, the circuits are implemented in 0.25 um technology, and all the transistors have the minimum channel lengths. a. Consider the CMOS inverter from Fig.2. a. If the NMOS transistor has channel width Wn and the PMOS transistor has channel width, Wp, label the voltage transfer characteristics from FIG.2. b that correspond to following device sizes:(6 points) A: Wn = 5 μm, Wp = 5 μm B: Wn = 1 μm, Wp = 5 μm C:Wn = 5 μm, Wp = 1 μm (a) (b) FIG.2 CMOS inverter and Voltage Transfer Characteristics
