C-V curves derived from two MOSCAPs with the same gate area are compared below. The MOS-cap exhibiting curve b has (choose one: a thinner, the same, a thicker) oxide and (choose one: a lower, the same, a higher) doping than the MOScap exhibiting curve a. Briefly explain how you arrived at your chosen answers. Cox is the same. Cdep must be changing, which is why Cmin are different. Note that VT is also different.

C-V curves derived from two MOSCAPs with the same gate area are compared below. The MOS-cap exhibiting curve b has (choose one: a thinner, the same, a thicker) oxide and (choose one: a lower, the same, a higher) doping than the MOScap exhibiting curve a. Briefly explain how you arrived at your chosen answers. Cox is the same. Cdep must be changing, which is why Cmin are different. Note that VT is also different.

Image text

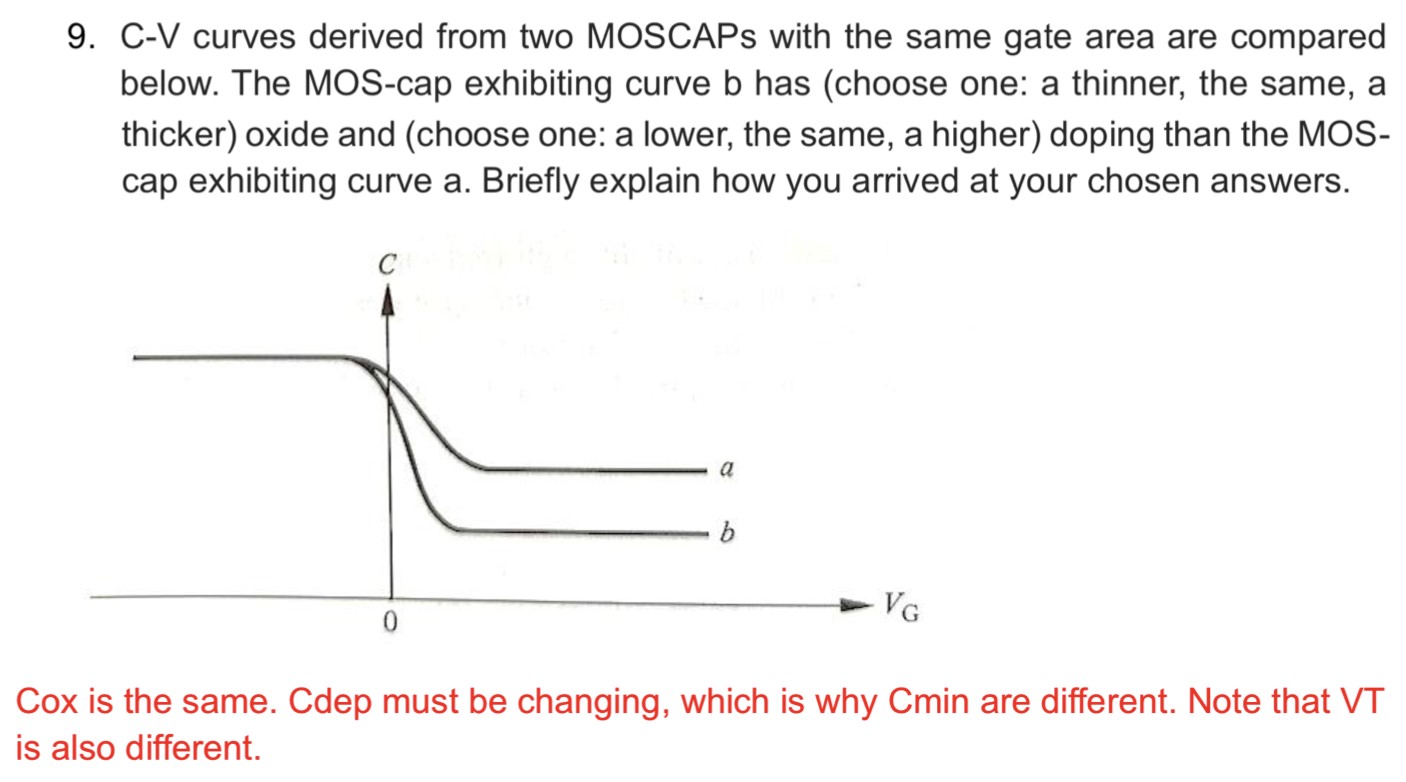

  1. C-V curves derived from two MOSCAPs with the same gate area are compared below. The MOS-cap exhibiting curve b has (choose one: a thinner, the same, a thicker) oxide and (choose one: a lower, the same, a higher) doping than the MOScap exhibiting curve a. Briefly explain how you arrived at your chosen answers.
Cox is the same. Cdep must be changing, which is why C m i n are different. Note that VT is also different.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

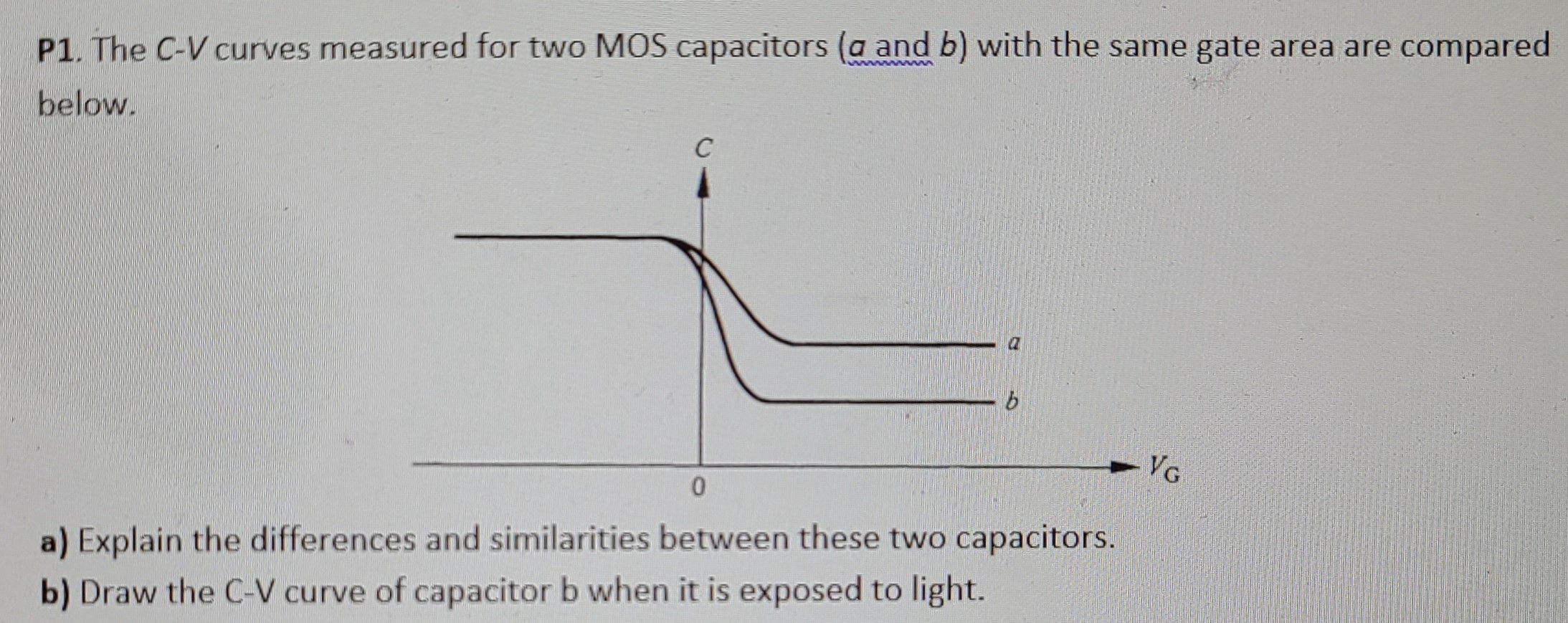

P1. The C−V curves measured for two MOS capacitors ( a and b ) with the same gate area are compared below. a) Explain the differences and similarities between these two capacitors. b) Draw the C-V curve of capacitor b when it is exposed to light.
