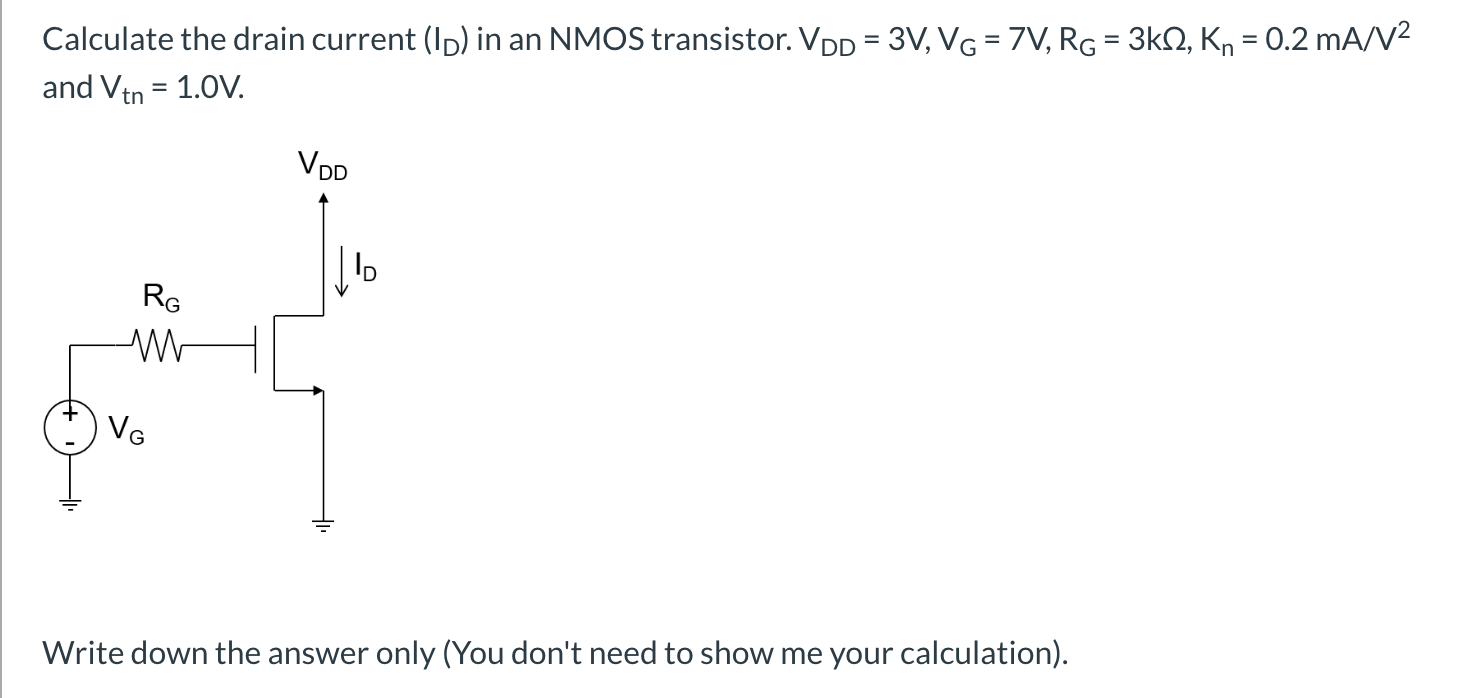

Calculate the drain current (ID) in an NMOS transistor. VDD = 3 V, VG = 7 V, RG = 3 kΩ, Kn = 0.2 mA/V2 and Vtn = 1.0 V. Write down the answer only (You don't need to show me your calculation).

Calculate the drain current (ID) in an NMOS transistor. VDD = 3 V, VG = 7 V, RG = 3 kΩ, Kn = 0.2 mA/V2 and Vtn = 1.0 V. Write down the answer only (You don't need to show me your calculation).

Image text
Calculate the drain current ( I D ) in an NMOS transistor. V D D = 3 V , V G = 7 V , R G = 3 k Ω , K n = 0.2 m A / V 2 and V t n = 1.0 V .
Write down the answer only (You don't need to show me your calculation).

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

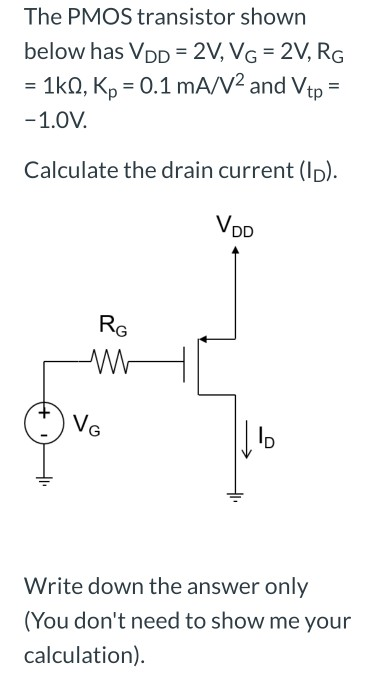

The PMOS transistor shown below has VDD = 2 V, VG = 2 V, RG = 1 kΩ, Kp = 0.1 mA/V2 and Vtp = −1.0 V. Calculate the drain current (ID). Write down the answer only (You don't need to show me your calculation).

Solution
0 0

Question 2. Current calculations in 180 nm node MOSFET transistor technology II You may assume the following data in the usual notation. Equations for the drain current can be found in the notes. VDD = 1.8 V, Vtn = 0.5 V, Vtp = −0.5 V and λn = |λp| = 0.2 V−1. Take kn = 4kp with kn = 300 μA/V2, where k is the process transconductance parameter. L = 0.18 μm, (W/L)n = n = 1.5 and (W/L)p = p = 6. (a) How much drain current flows in an n-channel MOSFET when Vgs = 0.7 V and Vds = 0.1 V ? Express the drain current as the drain current per μm device width. (b) How much drain current flows in a p-channel MOSFET when a voltage of 1.1 V is applied to gate electrode and 1.7 V applied to the drain electrode? Comment on your answer in relation to the result in part (a). (Hint: in this question you are not give the potential differences). (c) Ignoring the effects of channel length modulation, how much drain current flows in an nchannel MOSFET when Vgs = 0.7 V and Vds = 0.8 V ? How would your answer change if channel length modulation effects are taken into consideration?

Solution
0 0

Consider the circuit shown below with a Si n−MOSFET. Given: VDD = 7 V, VG = 2 V and RL = 1.1 KΩ. Consider the MOSFET is operating in the linear region under this biasing condition. If the voltage drop across the drain and source terminals, VDS = 0.4 V and the threshold voltage, VT = 0.5 V. Calculate - (a) The drain current (IDS) and the power dissipated in the MOSFET. (b) 'ON resistance' of the MOSFET. (c) 'Conduction parameter (Kn)' of the MOSFET. (d) Capacitance of the gate oxide (Cox) [in F/cm2]. (e) Thickness of the gate oxide layer (tox) and the transconductance (gm) of the MOSFET. (f) Calculate the sheet electron concentration (ns) in the channel at the source end. Given: Channel length, L = 0.8 μm, Gate Width, W = 20 μm, electron mobility in the channel, μn = 800 cm2/Vs, and dielectric constant of the oxide layer is 3.9.
Solution
1 0
