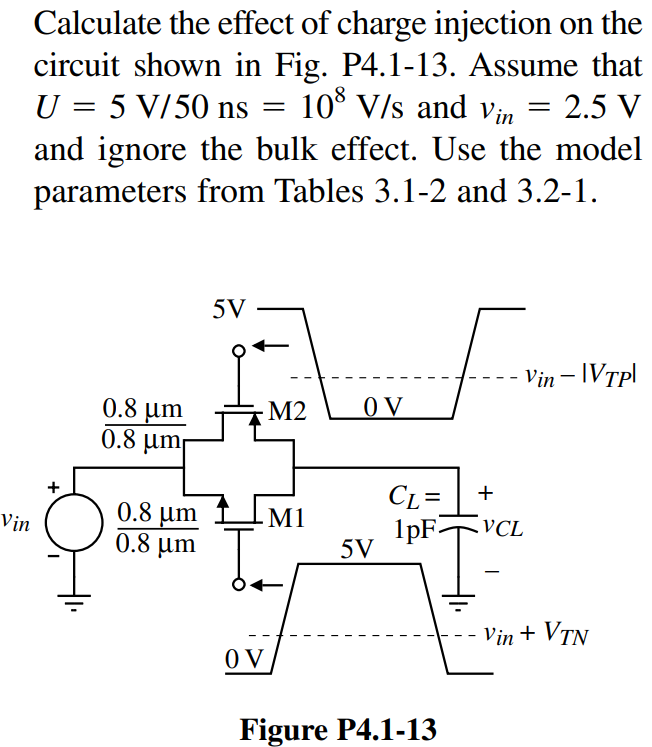

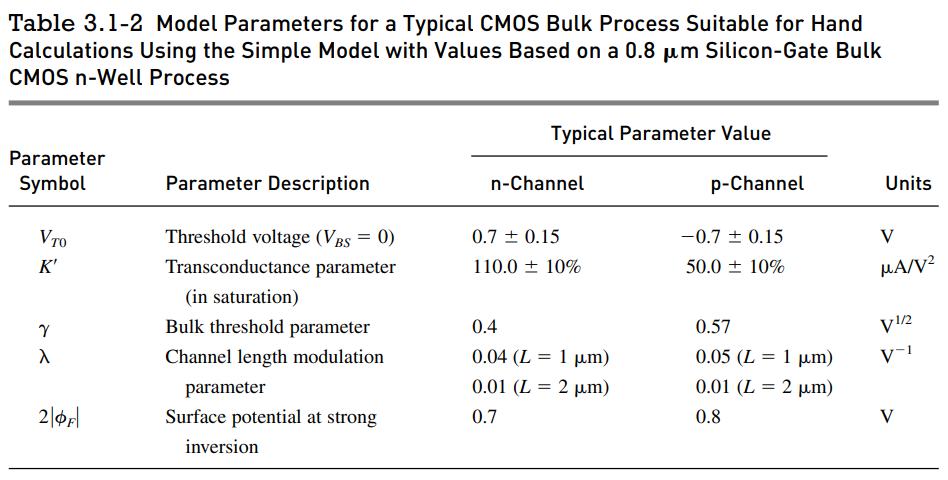

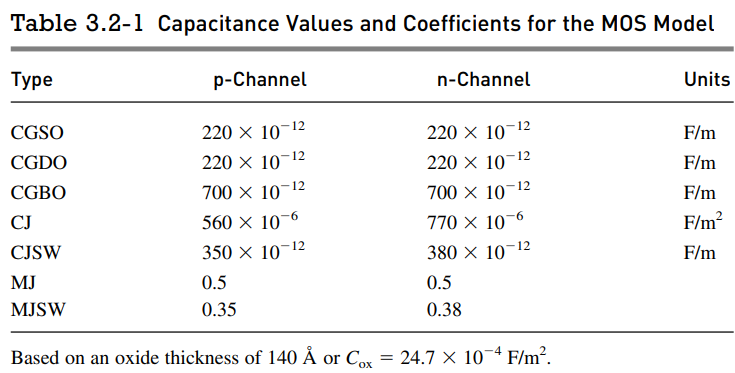

Calculate the effect of charge injection on the circuit shown in Fig. P4.1-13. Assume that U = 5 V/50 ns = 10^8 V/s and vin = 2.5 V and ignore the bulk effect. Use the model parameters from Tables 3.1-2 and 3.2-1.
